With Windows Notebook and Visualizer 3D Software



• Bestseller: 3D ground scanner and metal detector
• Detection Depth: Customers found objects to 25 m (82 ft) deep
• Use Cases: Treasure hunting, natural gold prospection
• Operating Modes: 3D Ground Scan, Pinpointer, Magnetometer, Mineral Scan
• Detectable Objects: Natural gold minerals, treasure chests, jewelry, militaria

Use Cases:

• Archeology
• Cavity Detection
• Explosive Ordnance Disposal Services
• Militaria Detection
• Natural Gold Prospection
• Treasure Hunting
• OKM Search Services

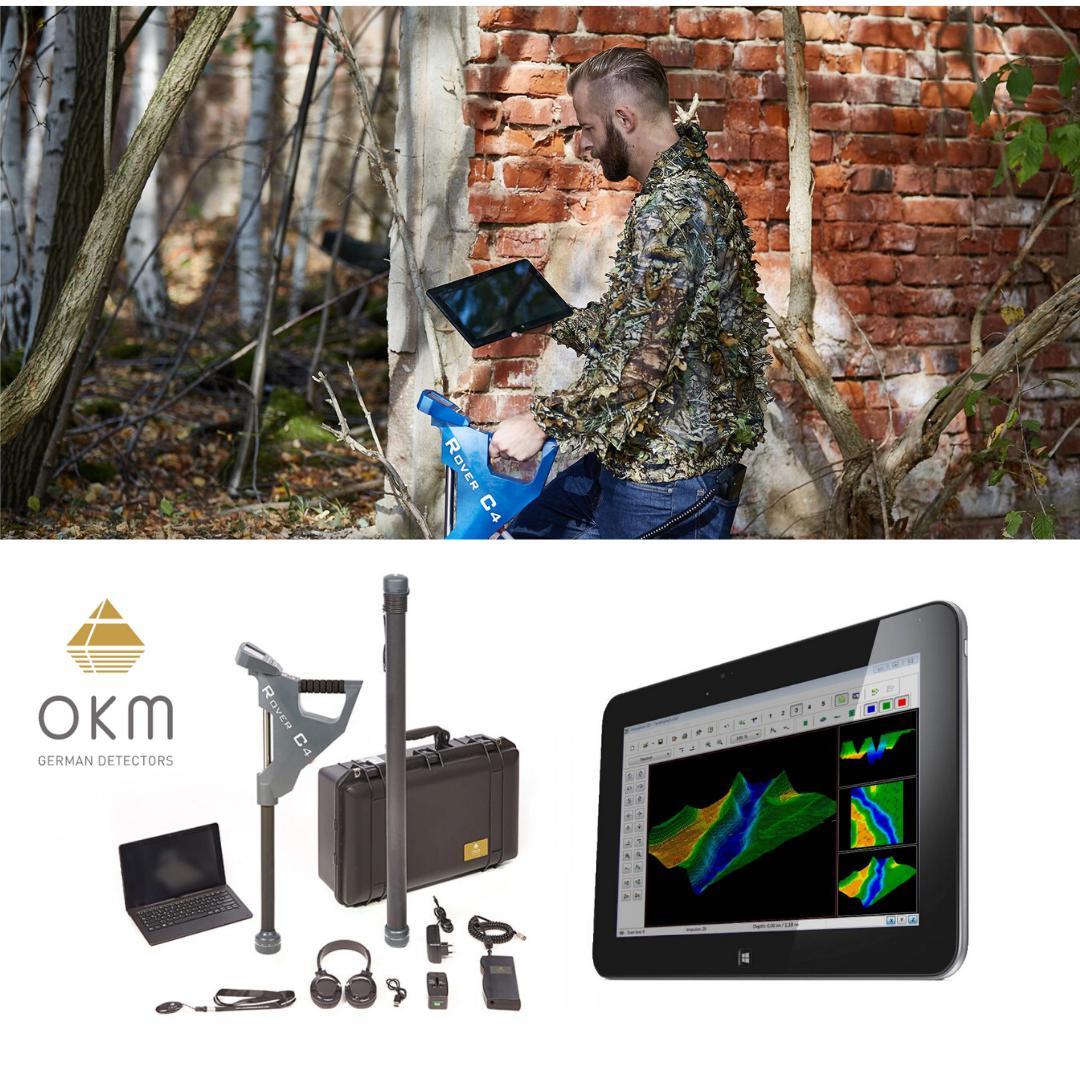

Package Includes:

• 1x Control Unit
• 1x Standard Probe with LED Orbit
• 1x Super Sensor with LED Orbit

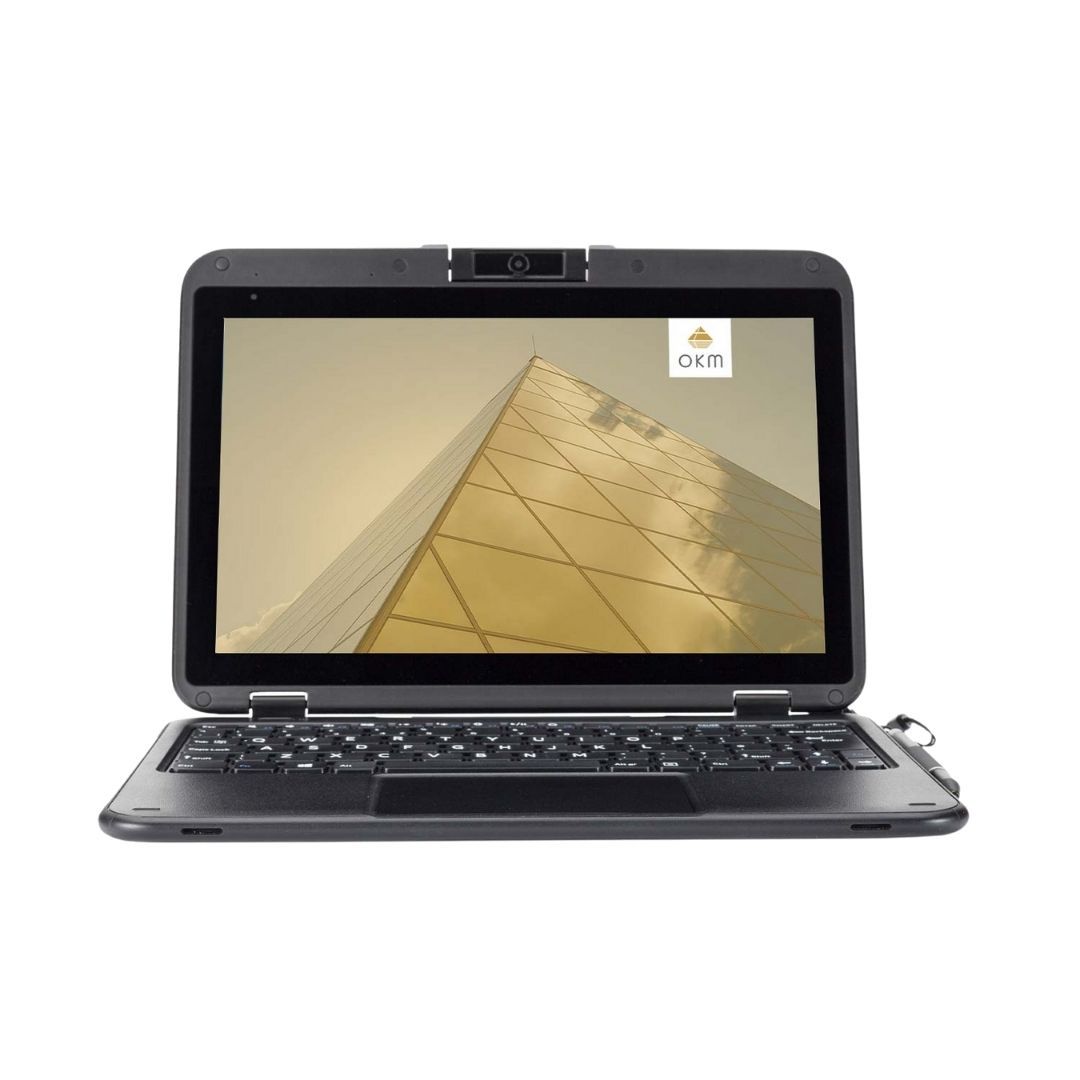

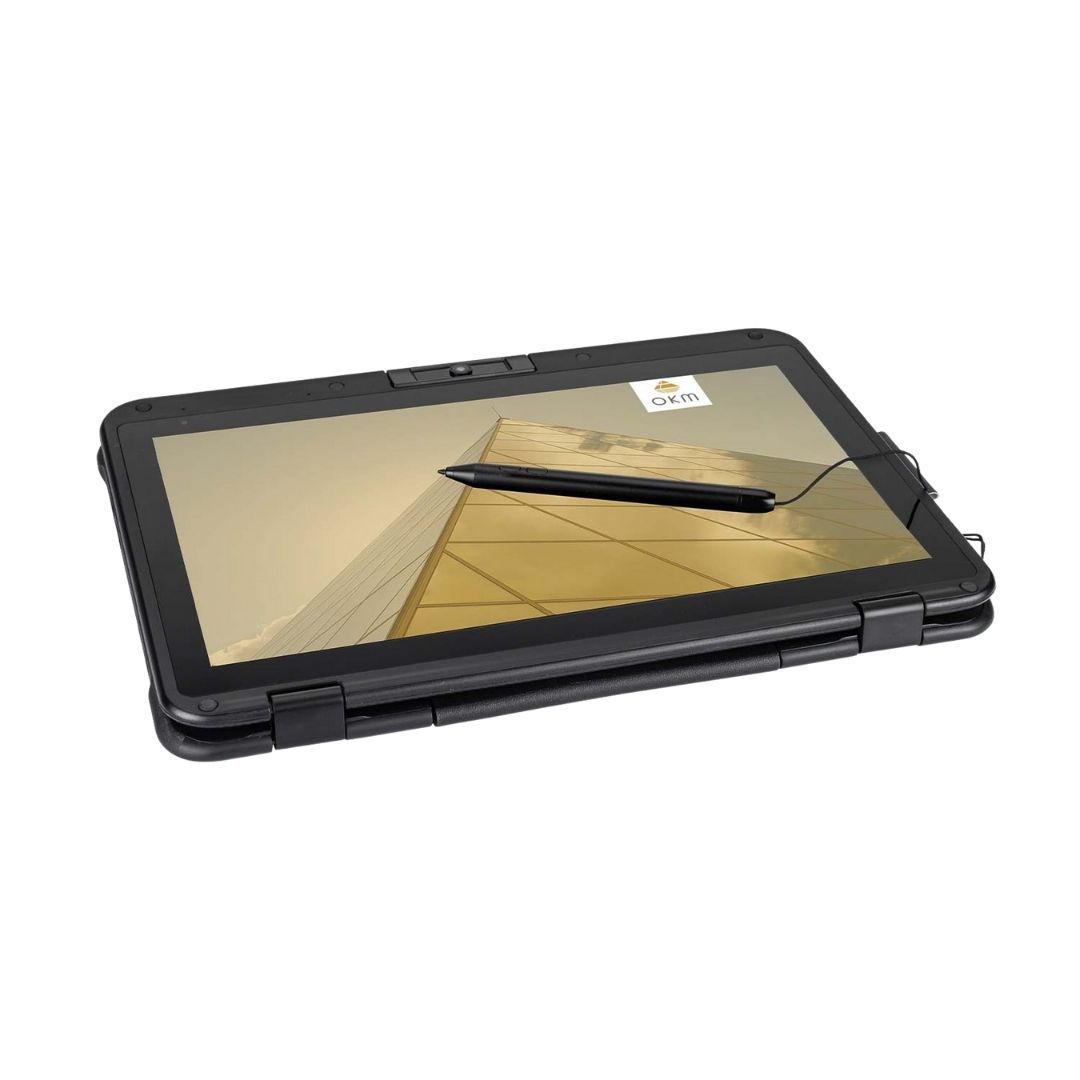

• 1x Pre- Configured Windows Notebook
• 1x Software Visualizer 3D Studio Standard Edition
• 1x Bluetooth Headphones
• 1x Charger and Travel Adapter
• 1x Protector Tube
• 1x Protector Tube
• 1x Water Proof and Shock-resistant Protector Case
• 1x Quick Start Guide

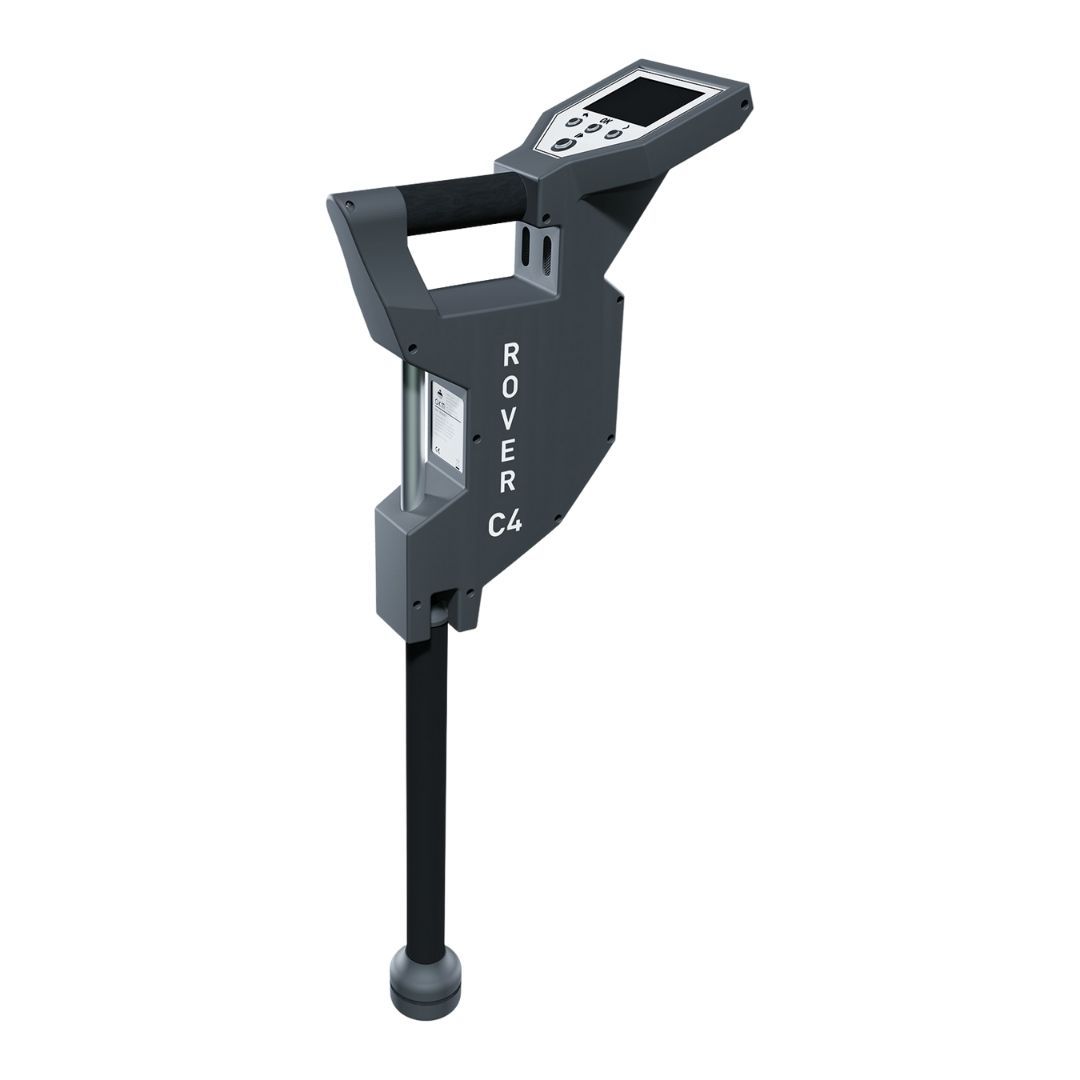

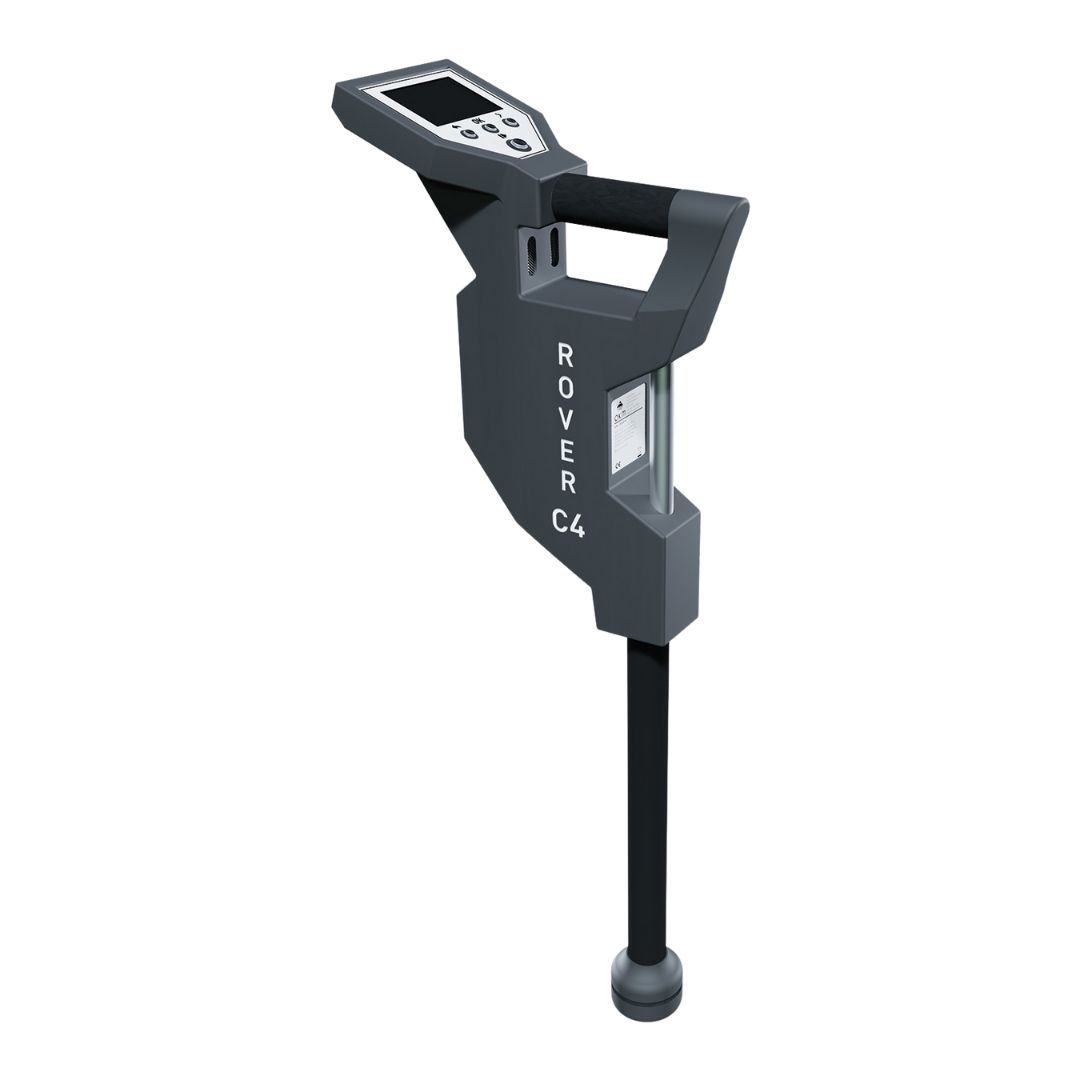

The ground scanner Rover C4 is an easy-to-use multi-purpose treasure and void detector. The detector supports treasure hunters and archaeologists in finding long-time buried treasures such as relics, coins, vessels, and jewelry as well as underground structures like tunnels, caves, chambers, and graves. The measured data can be viewed and analyzed in the Visualizer 3D Studio Software.

For more info on OKM Rover C4 - watch OKM Rover C4 videos here!

Special Features Of The OKM Rover C4

• Operational touchscreen with alternative hardware buttons
• Graphical user interface in many different languages
• Improved multilevel LED lighting for detector usage in darkness
• Exchangeable probes: Standard Probe and Super Sensor
• Immediate basic target discrimination thanks to LED Orbit
• Supported operating modes: 3D Ground Scan, Pinpointer, Mineral Scan, Magnetometer
• Integrated battery
• Simplified wireless data transfer
• 4 separate memory areas to store measuring data
• Including detection software Visualizer 3D Studio Standard Edition

Simple Operation Via Touchscreen

Treasure Detector Operating Modes

One of the most versatile operating modes in our 3D metal detectors is 3D Ground Scan. This function is used to scan a rectangular area to obtain measuring data from underground structures and objects.

However, in order to perform extensive ground measurements and achieve the maximum detection performance, we recommend using the operating modes Magnetometer, 3D Ground Scan and Pinpointer. The Mineral Scan mode is a Rover C4 add-on for gold prospectors.

Magnetometer

Use Magnetometer to clear the scan field of small metal items like nails, cans, screws and wires near the surface.

3D Ground Scan

3D Ground Scan provides a graphical measurement of any area for further analysis in the detection software Visualizer 3D Studio.

Pinpointer

With Pinpointer detectorists locate buried coins, rings, jewelry and similar treasure objects and artifacts more precisely.

Mineral Scan

Mineral Scan is used to locate natural gold deposits.

The fewer metal items near the surface, the better your 3D Ground Scan results. After clearing your scan field with Magnetometer, you can also find larger metal targets which are located deeper underground. Analyze your 3D Ground Scan images in Visualizer 3D Studio and locate the detected objects more precisely with the Pinpointer mode.

Ground Scanning with OKM Rover C4 Metal Detector

One of the most versatile operating modes in our 3D metal detectors is Ground Scan. This function is used to scan a rectangular area to obtain measuring data from underground structures and objects.

Detectable items that can be found with our 3d ground scanner OKM Rover C4 are:

• Lost treasures and hidden precious metals
  treasure chests, gold coins, jewelry, silverware, statues, general valuables, buttons, medals, etc.
• Underground voids and cavities
  tunnels, graves, chambers, cellars, sepulchers, dugouts, shelters, bunkers, etc.
• Natural gold minerals
  gold ore, gold deposits, gold veins, etc.

3D Data Analysis With Visualizer 3D Software

All data that has been recorded with the OKM Rover C4 metal detector during a ground scan or mineral scan can be transferred to the Visualizer 3D Software to process a detailed three-dimensional analysis.

During Analysis

Computer Minimum Requirements

• Interface (data transmission): USB 2.0
• Free disk space: 250 MB
• Working memory (RAM): 2 GB
• Display: 1920 x 1080
• Processor: 1.2 GHz
• Graphics card: 1 GB RAM, OpenGL 3.3
• Operating system: Windows 10

Data Transmission

• Technology: Bluetooth 5.1
• Frequency: 2.402 – 2.480 GHz
• Maximum Transfer Rate: 1 Mbps
• Maximum Transmitting Power: +8 dBm
• Maximum Range: approx. 10 m

OKM Rover C4 Control Unit

• Dimensions (H x W x D): 390 x 300 x 140 mm
• Weight: about 1.5 kg
• Input voltage (max.): 19 V DC, 3.16 A, 60 W
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / Slave CPU: Cortex M0, 24 MHz
• Display: 3.5” Resistive touch, 480 x 320 Pixel
• Display CPU: Cortex M3, 32 MHz, 128 KB RAM
• Data memory: 4 GB
• Sample rate: 1024 values / second
• Measurement resolution: 16 bit
• Operating temperature: –10°C – 60°C
• Storage temperature: –20°C – 70°C
• Audio: Internal speaker / Bluetooth
• Waterproof: No
• Air humidity: 5% – 75%

OKM Rover C4 Standard Probe

• Weight: 0.4 kg
• Length: 445 mm
• Diameter tube / LED Orbit: 35 mm / 65 mm
• Technology: SCMI-15-D


OKM Rover C4 Super Sensor

• Weight: 0.9 kg
• Length: 960 mm
• Diameter tube / LED Orbit: 50 mm / 65 mm
• Technology: SCMI-15-D
