New Multi-Technology Detector

Part Number: 4521

With the new 3D ground scanner, OKM introduces the innovative PentaSense System, which benefits from the performance of 5 side-by-side supersensors that scan the field simultaneously.

Higher, Faster, Wider! With the new PentaSense System, treasure hunters achieve higher-resolution scans even faster in wide areas.

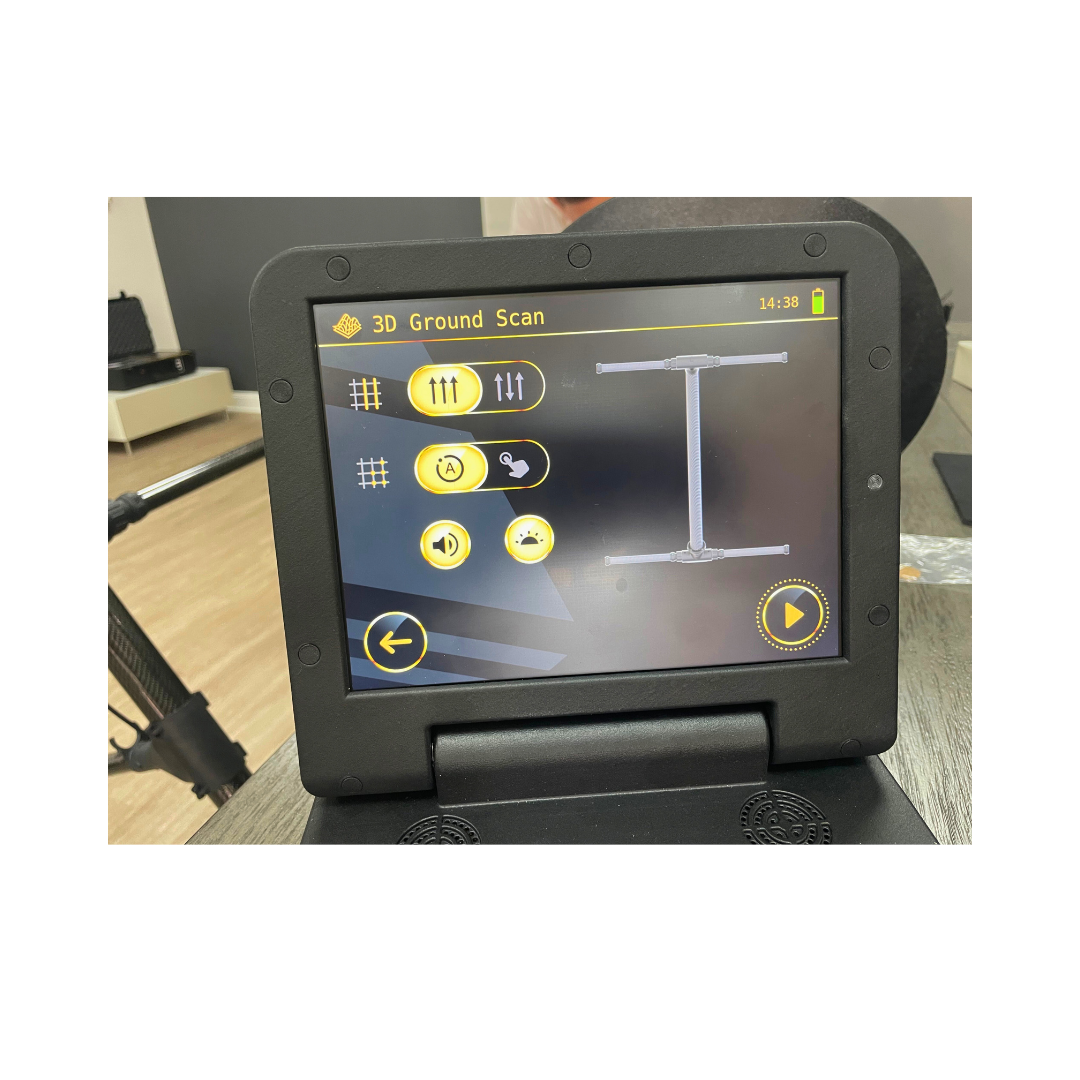

With the approved 3D ground scan technology, users can detect treasures and structures in depths down to 25 m (82 ft). In addition, the eXp 5500 comes with a VLF search coil for near-surface treasures.

OKM eXp 5500 Professional Features:

• Bestseller: Renowned 3D Ground Scan Technology
• Use Cases: Archaeology, Treasure Hunting, Cavity Detection
• Detection Depth: Customers can find objects down to 25 m (82 ft) deep

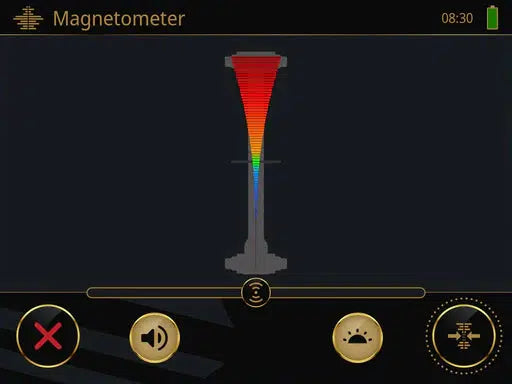

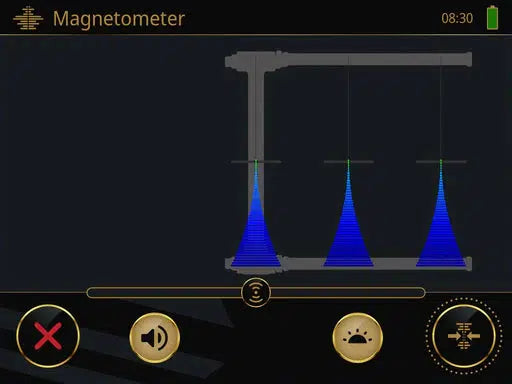

• Operation Mode: 3D Ground Scan, Magnetometer, and VLF
• Detectable Objects:  Artifacts, militaria, treasure chests, cavities, tunnels, jewelry
• 2-Year Manufacturer Warranty
• Made in Germany

OKM eXp 5500 Professional Use Cases:

• Archaeology
• Treasure Hunting
• Cavity Detection
• Militaria Detection
• Agriculture
• Forensics
• OKM Search Services
• Public Services
• Explosive Ordnance Disposal Services

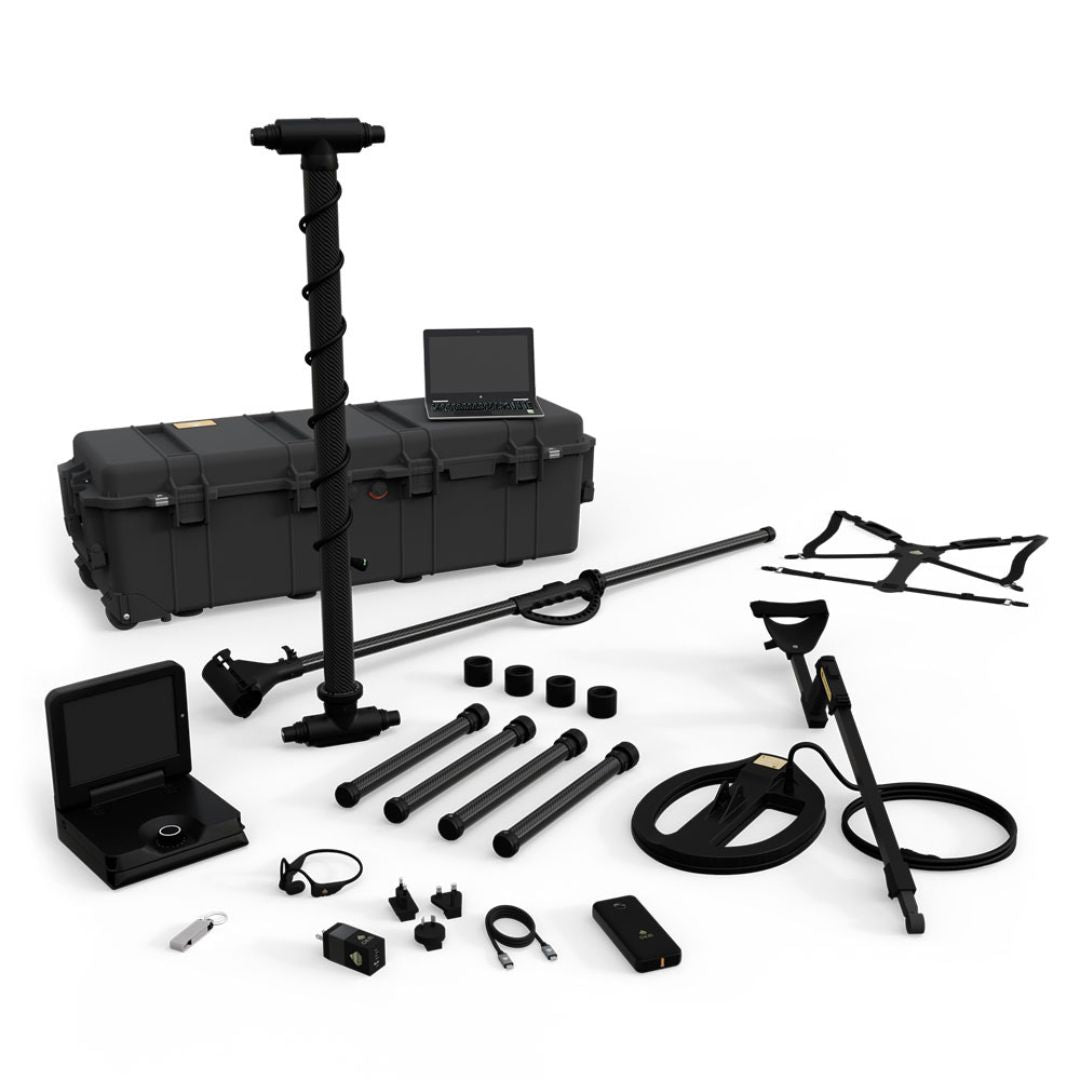

OKM eXp 5500 Professional Package Includes:

• 1x Control Unit
• 1x Waterproof and shock-resistant Protector Case

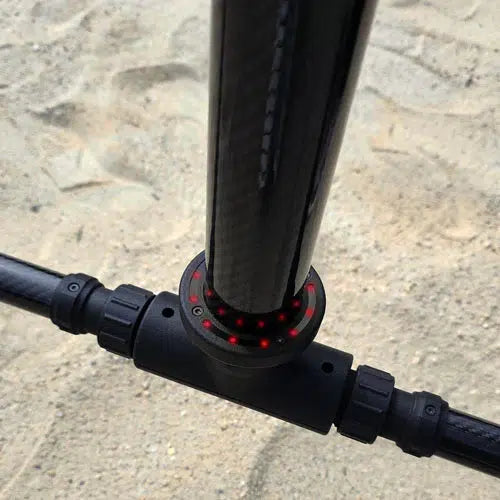

• 1x Super Sensor with LED Orbit
• 1x Bluetooth Headphones incl. charging cable
• 1x USB Flash Drive with OKM Visualizer 3D Studio Professional Edition
• 1x Pre-configured Windows Notebook

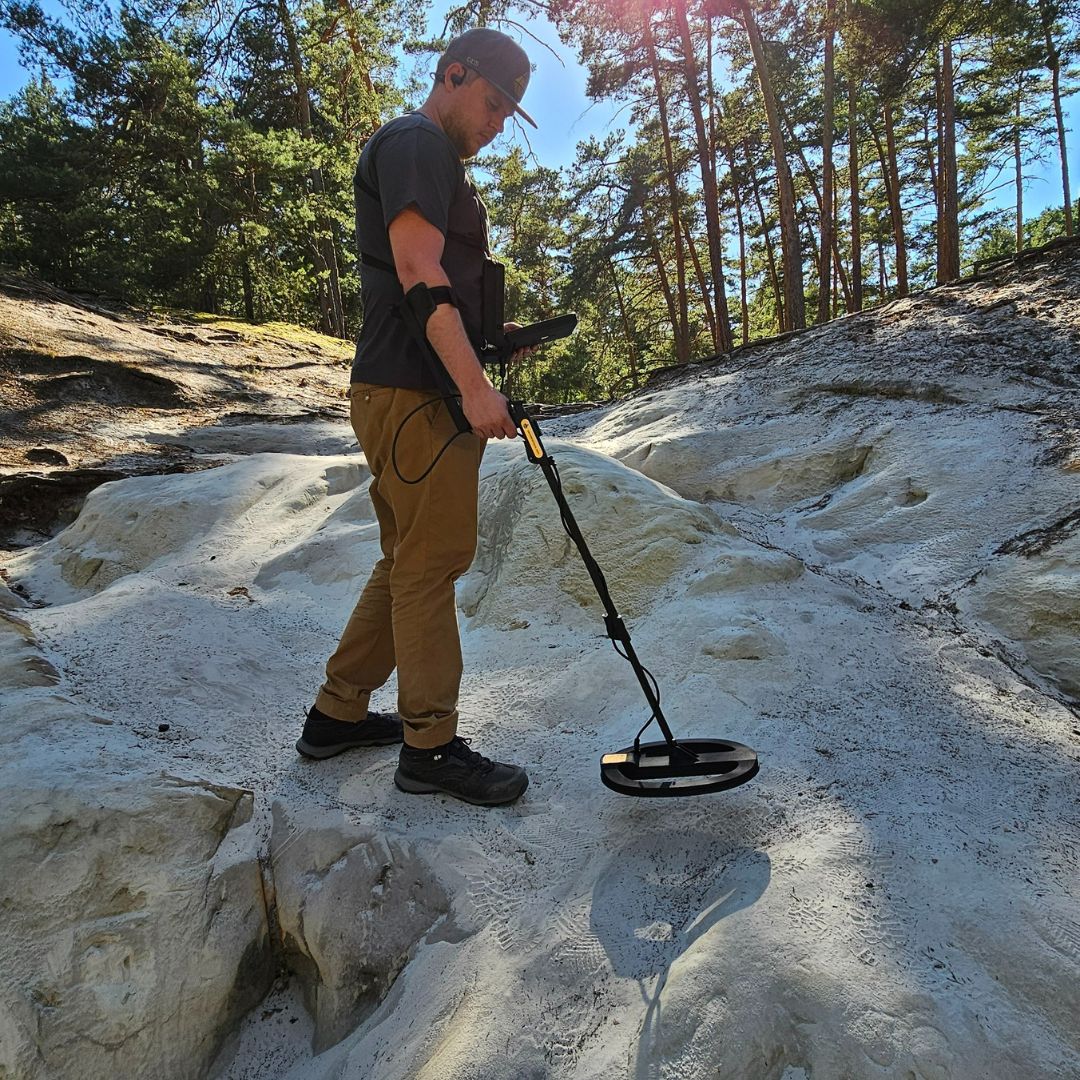

• 1x PentaCoil (VLF Search Coil)
• 1x Telescopic Rod
• 1x Carrying Strap
• 1x Charger with charging cable (USB-C)
• 1x Power Pack
• 4x Enhancer

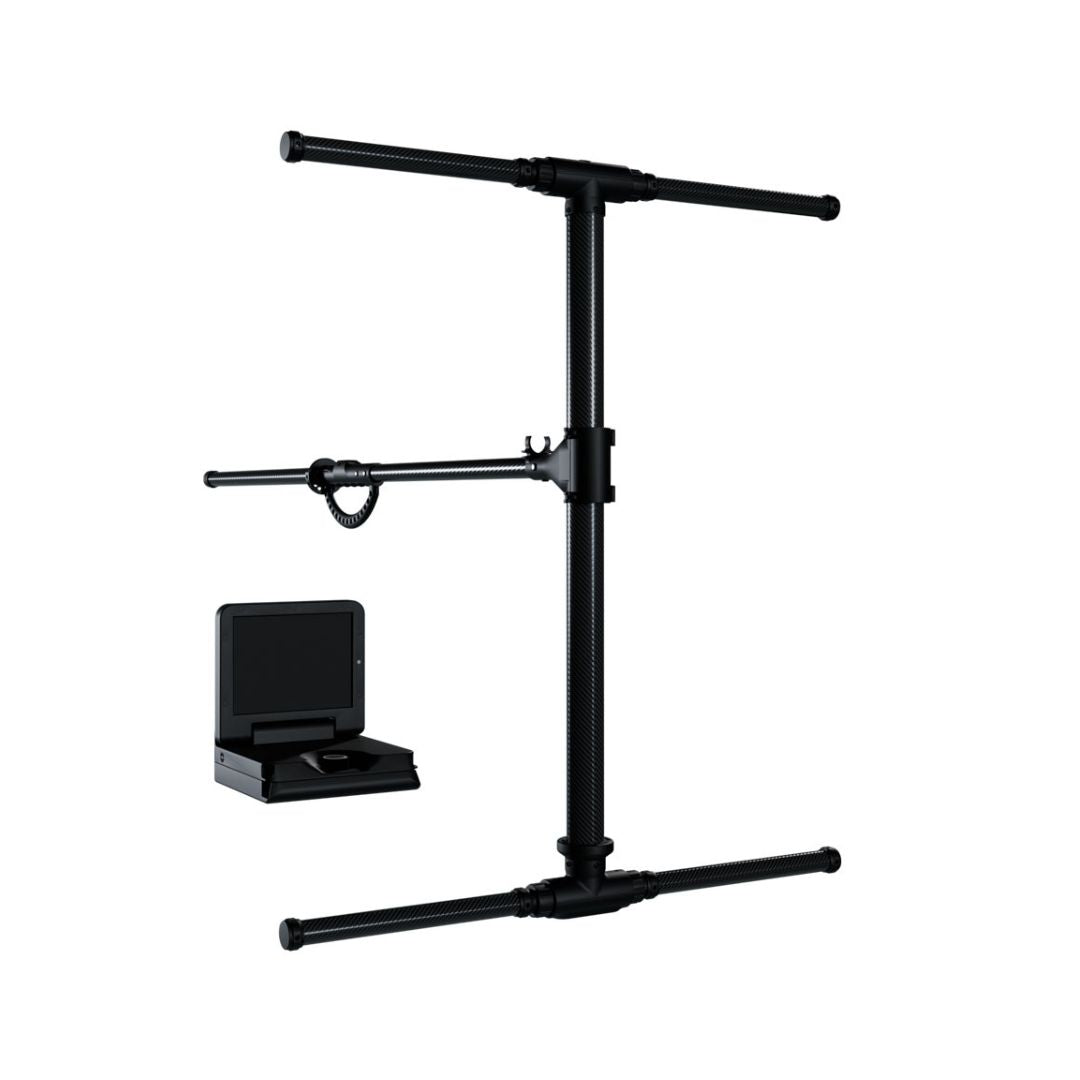

• 1x PentaSense Rod
• 4x Protective Cap
• 1x Back Strap


Special Features of the OKM eXp 5500 Professional

• Renowned 3D Ground Scan Technology

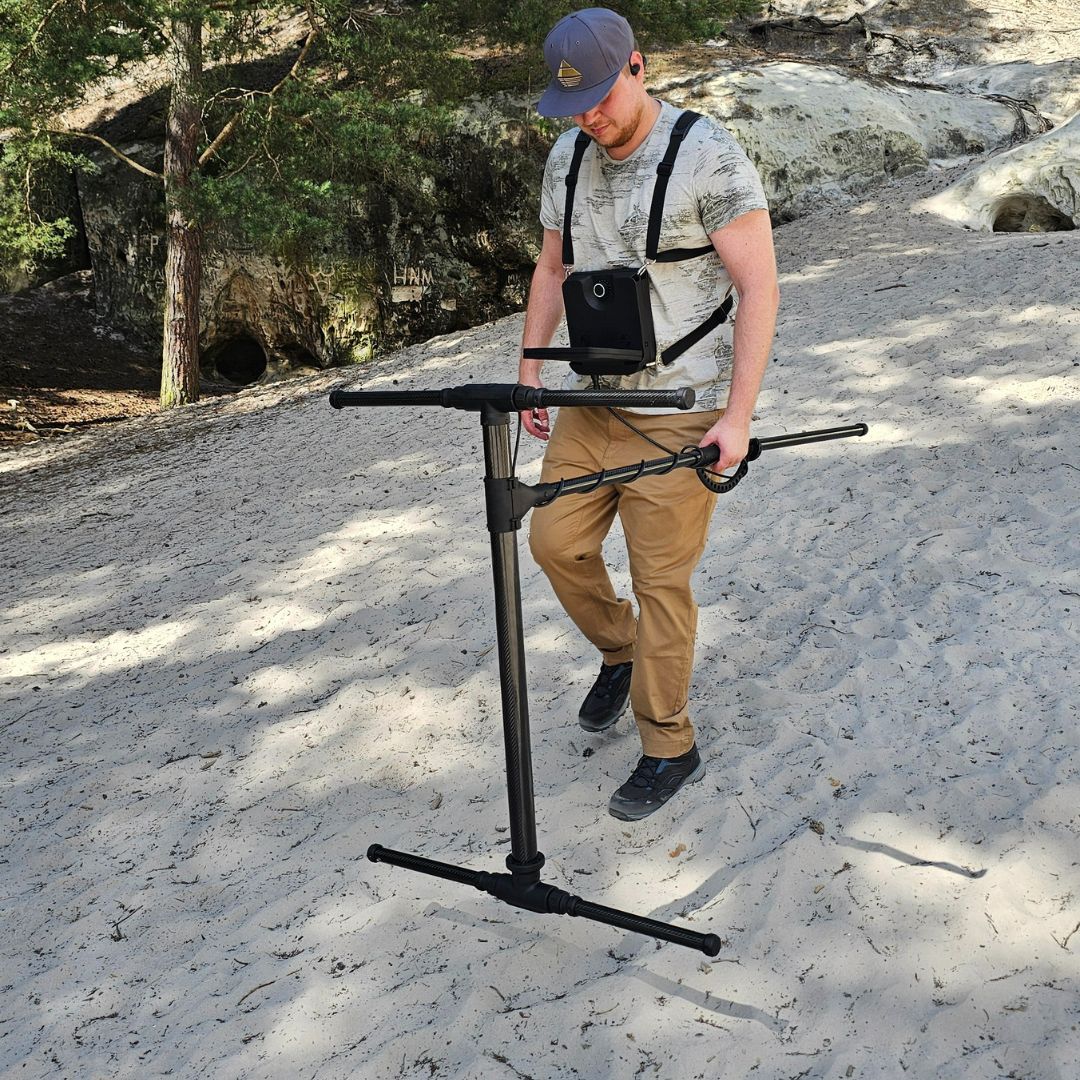

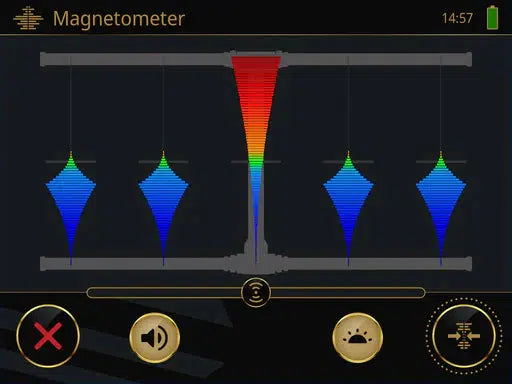

• NEW Multi-sensor PentaSense System
• NEW Multi-Frequency VLF Metal Detecting
• Improved Control Unit Features
• Perfect technology-mix for shallow and deep detecting down to 25 m
• Various sensor configurations for scans in narrow crevices and on wide scan fields
• Detection Depth: down to 25 m (82 ft) deep
• Detection Technologies: 3D Ground Scan, Magnetometer, and VLF

Specifications of the OKM eXp 5500 Professional

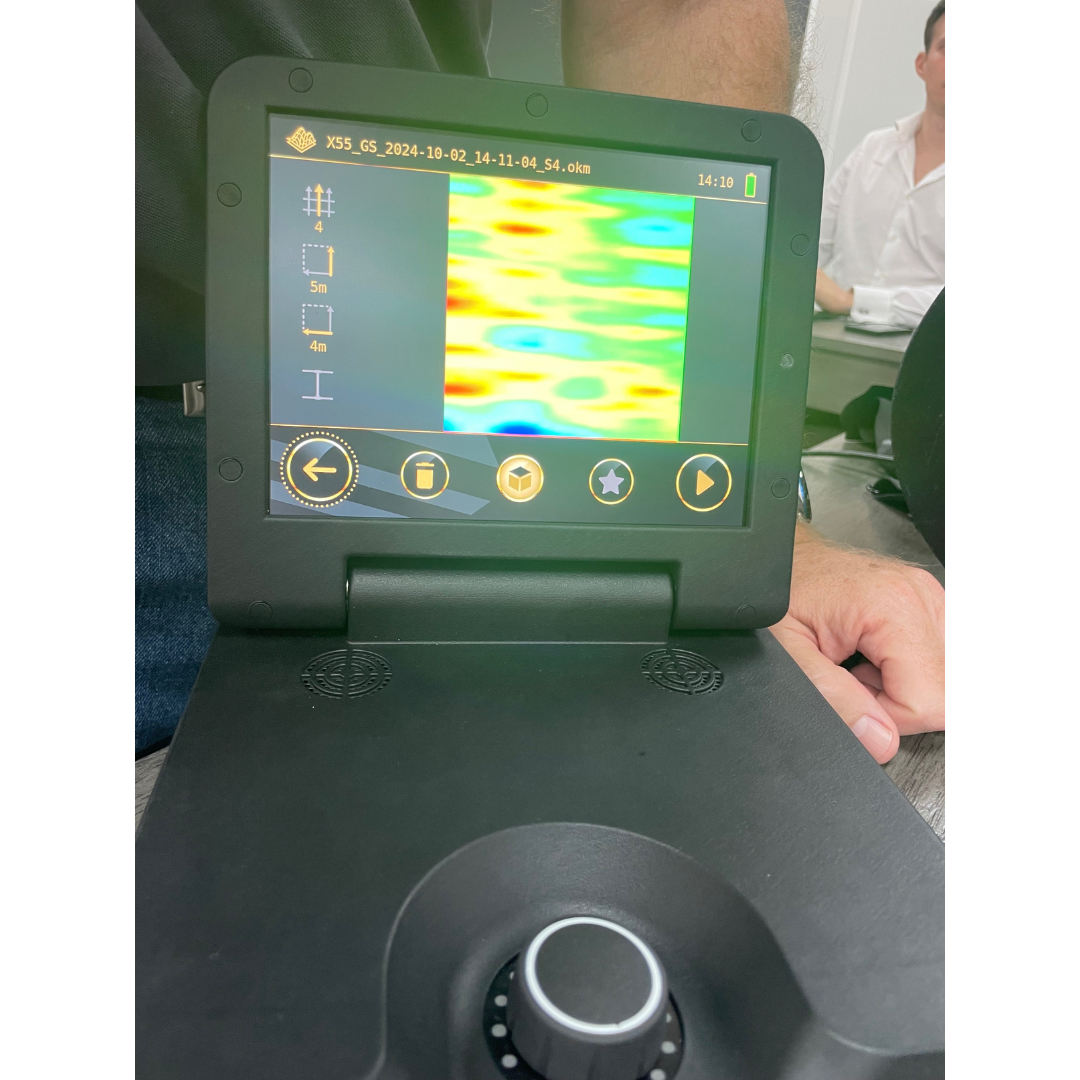

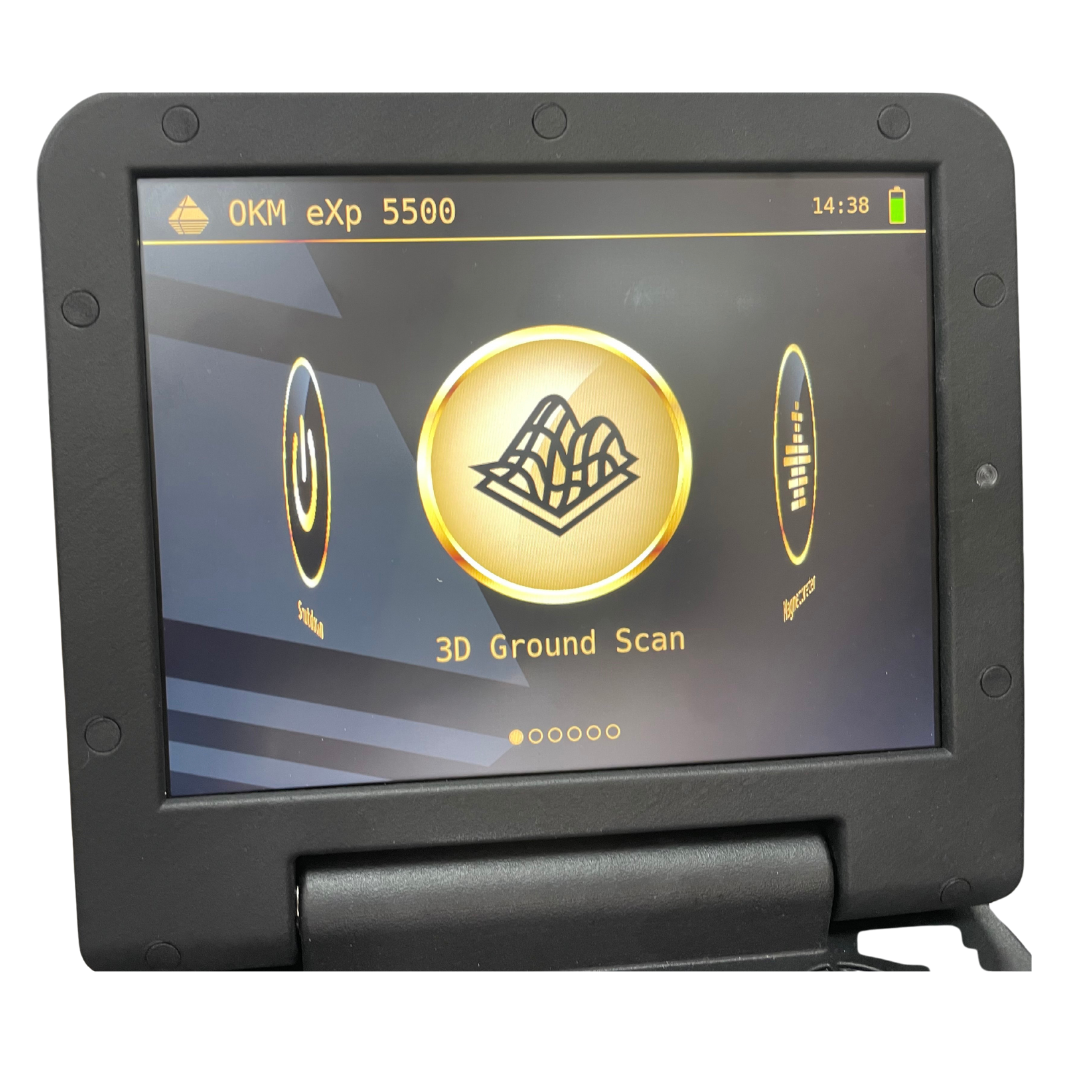

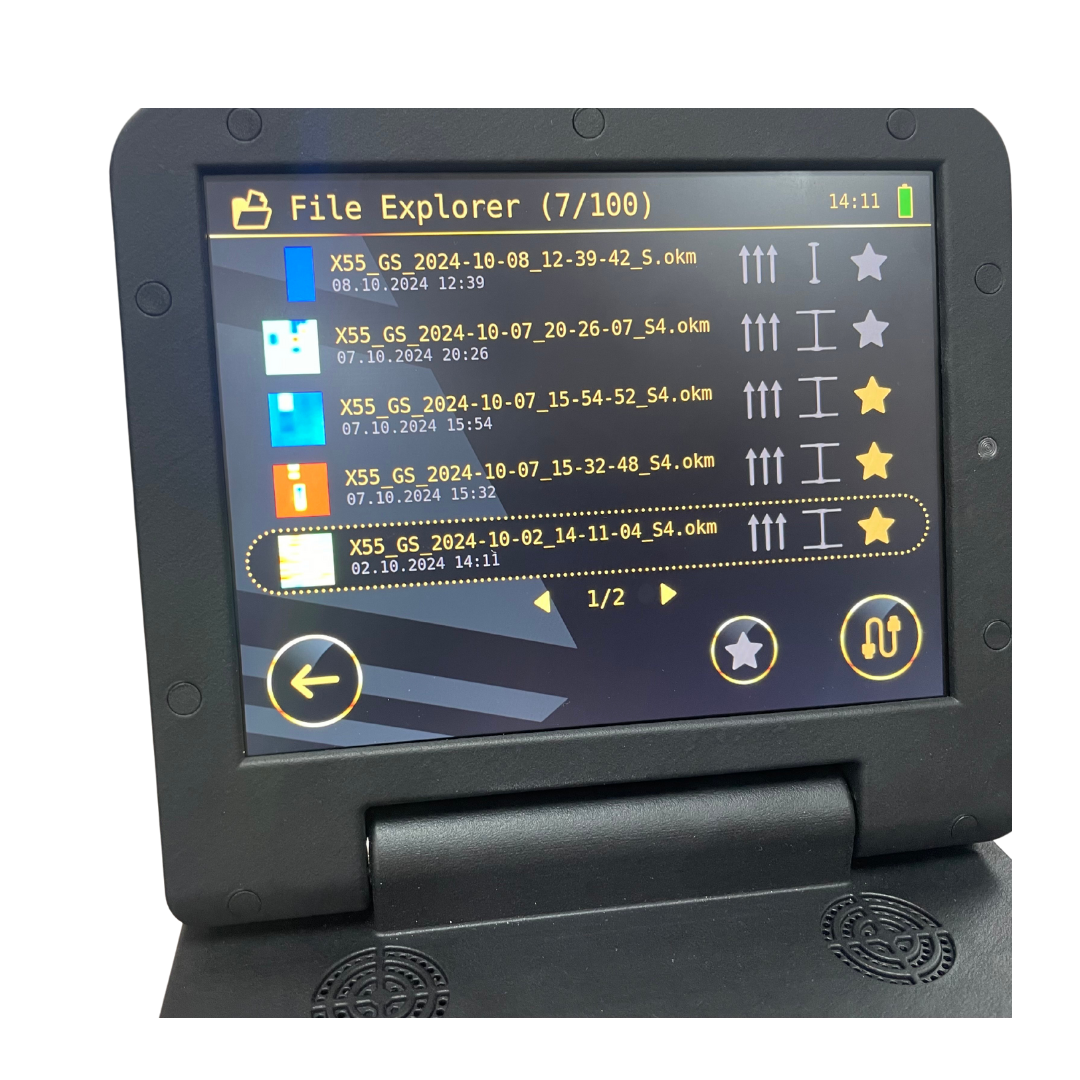

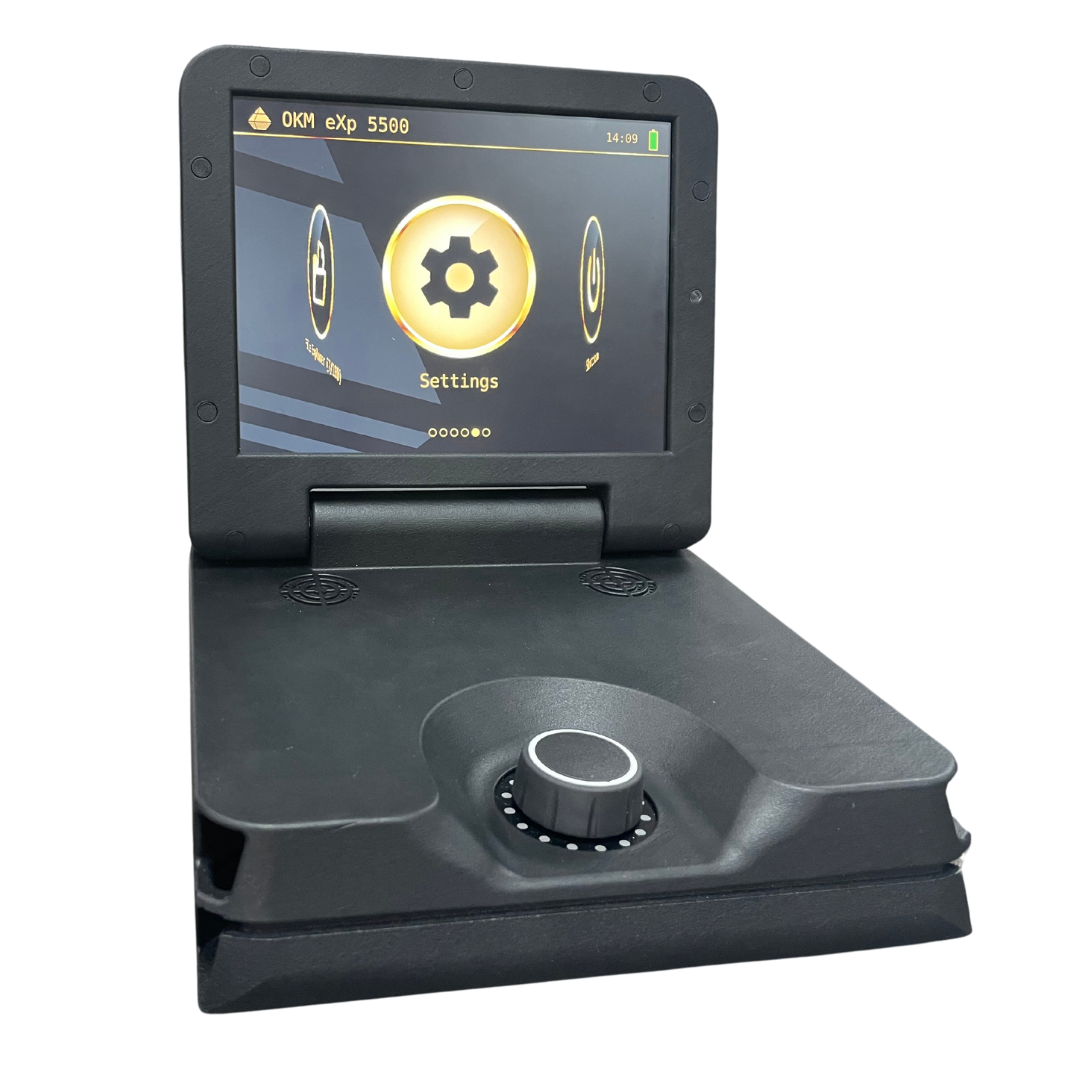

Control Unit

• Dimensions (H x W x D): 75 x 210 x 230 mm
• Weight: approx. 1.7 kg
• Output: 6.4 - 8.4 V DC, 15 W maximal
• Input: 12 V DC, 3 A maximal
• Safety Class: IP40
• Operating Time (full charged, 25 °C, medium brightness): approx. 7 hours
• Operating Temperature: -10 °C – 50 °C
• Charging Time: approx. 3 hours
• Display: 8.4" Diagonal, 1024 x 768 Pixel LVDS IPS-LCD
• Processing Unit: Main (ARM Cortex 4x-A53@1.6GHz), Companions (1x-M33@96MHz, 1x-M4@48MHz, 1x-M33@38MHz, 1x-M7@216MHz)
• Working Memory (RAM): 2 GB
• Data Memory (eMMC): 8 GB
• Feedback: acoustic, visual
• Storage temperature: -20 °C – 60 °C
• Air humidity: 5 % – 75 %
• Waterproof: No
• Data Transmission: USB-C
• Audio: built-in Speakers or Bluetooth-LowLatency (A2DP

Super Sensor:

• Dimension (L x B x D): 1010 x 200 x 110 mm
• Weight: approx. 0.74 kg
• Cable Length: approx. 1.80 m
• Input: 6.4-8.4v DC, 4W
• Safety Class: IP40
• Receiver: Dual/Hi-Gain-Vertical-Geophysical Phase Reader-EMSR
• Sensor Technology: SCMI-15-D
• Processing Unit: ARM Cortex-M33@38MHz

Enhancer:

• Length: 335 mm
• Diameter: 45 mm
• Weight: approx. 0.1 kg
• Input: 5.0 V DC, 0.25 W
• Safety Class: IP40
• Sensor Technology: SCMI-15-D

PentaCoil

• Dimensions (L x W x H): 345 x 265 x 70 mm
• Weight: 0.84 kg
• Cable Length: 1.80 m
• Input: 6.4 - 8.4 V DC, 2 W maximal
• Safety Class: IP40
• Technology: VLF
• Processing Unit: ARM Cortex-M7@216MHz

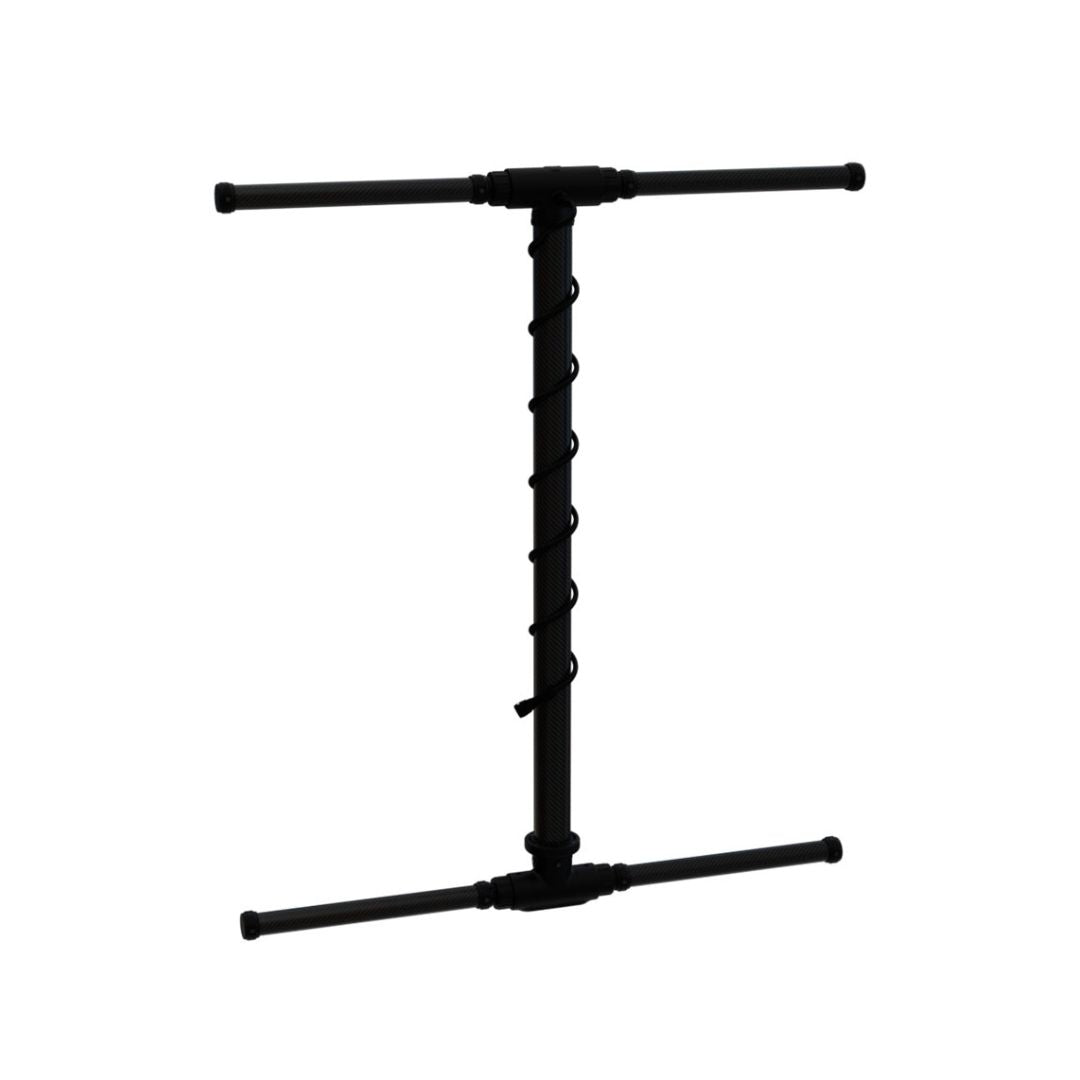

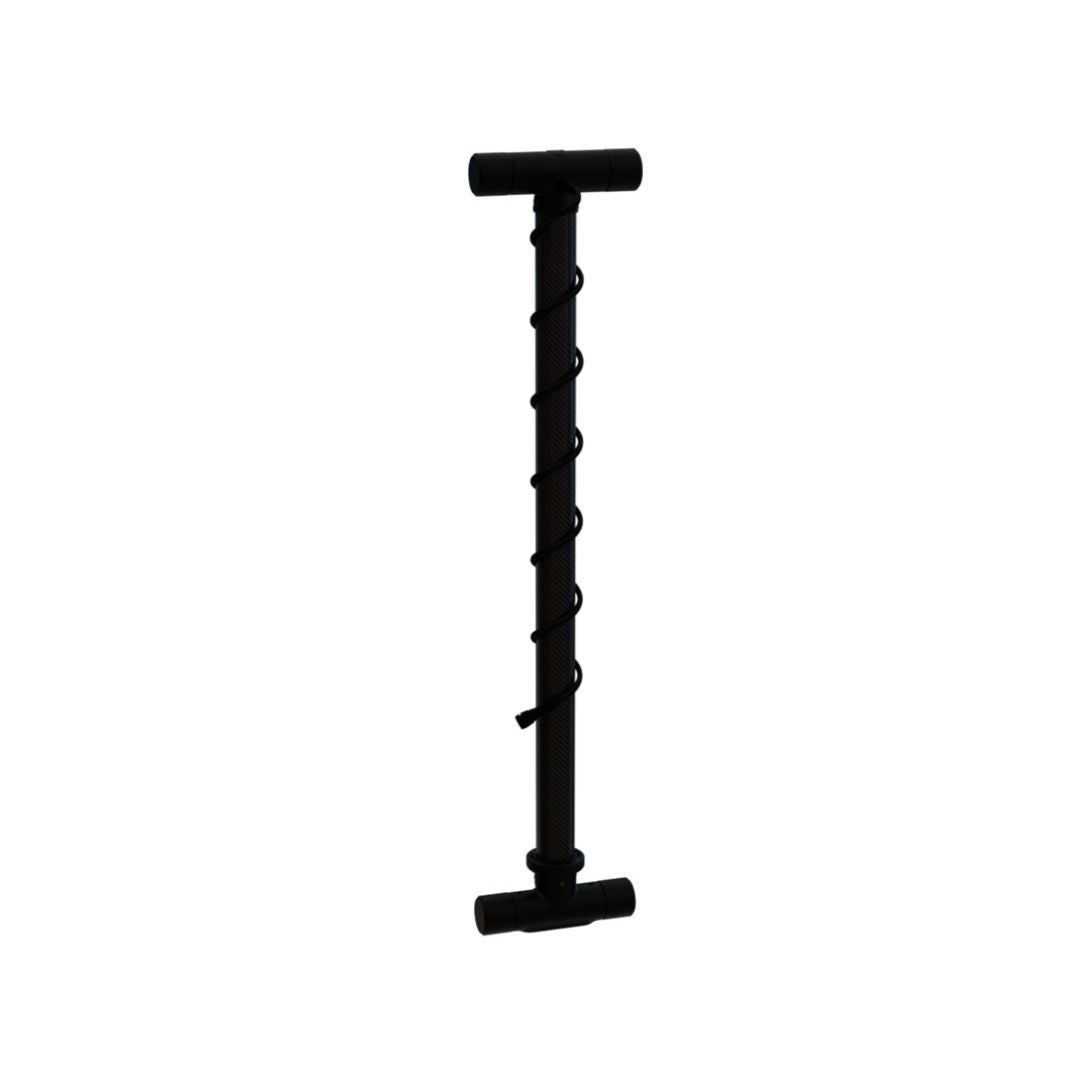

PentaSense Rod

• Dimensions, closed (L x W x H): 920 x 70 x 150 mm
• Dimensions, opened (L x W x H): 1520 x 70 x 130 mm
• Weight: 2.76 kg
