Without Smartphone, Windows Notebook, and Peli Case
Part Number: 4457
Fusion Ultra Light is an easy-to-use ground scanner for treasure hunters who look for long-time buried artifacts and treasures in the soil as well as in tombs, tunnels and caches. The treasure detector is a special edition combining the performance of Fusion Professional with the flexibility of Rover UC. This Ultra Light edition includes the OKM App for installation on your Android smartphone and the renowned scan analysis software Visualizer 3D Studio for installation on your Windows notebook.
OKM Fusion Ultra Light Features:
- Compact: Easy-to-use and easy-to-transport treasure detector for users with small budget – perfect to achieve first successes
- Detection depth: Customers found objects down to 8 m (26 ft) deep
- Use cases: Treasure hunting, cavity detection
- Operating modes: 3D Ground Scan, Magnetometer
-
Detectable objects: Treasure chests, cavities, tunnels
- 2-Year Manufacturer Warranty
- Made in Germany
OKM Fusion Ultra Light Use Cases:
- Treasure Hunting
- Militaria Detection
- Cavity Detection
- Archaeology
- Explosive Ordnance Disposal Services
- OKM Search Services

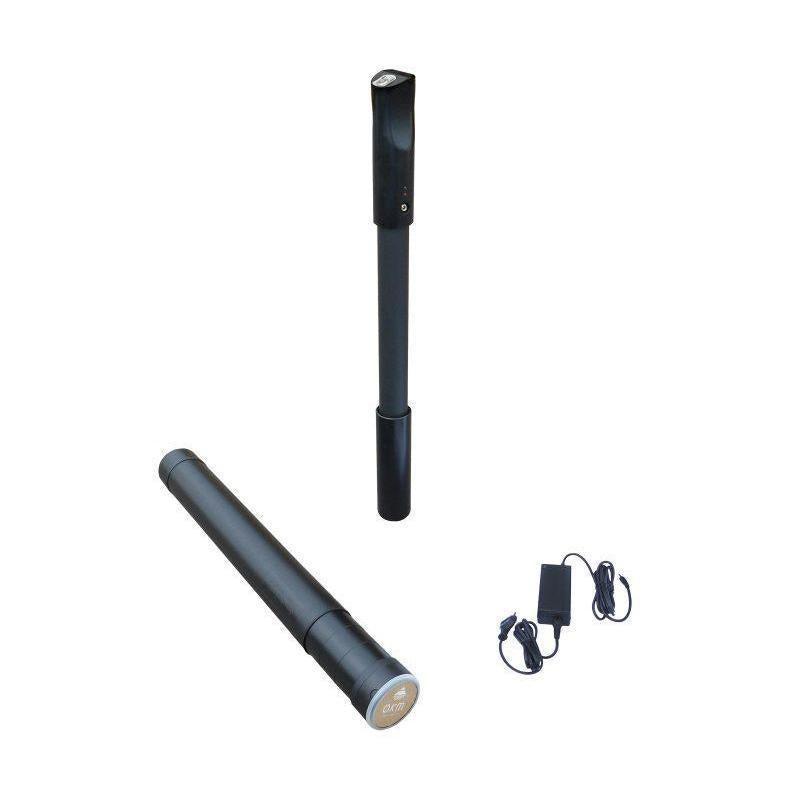

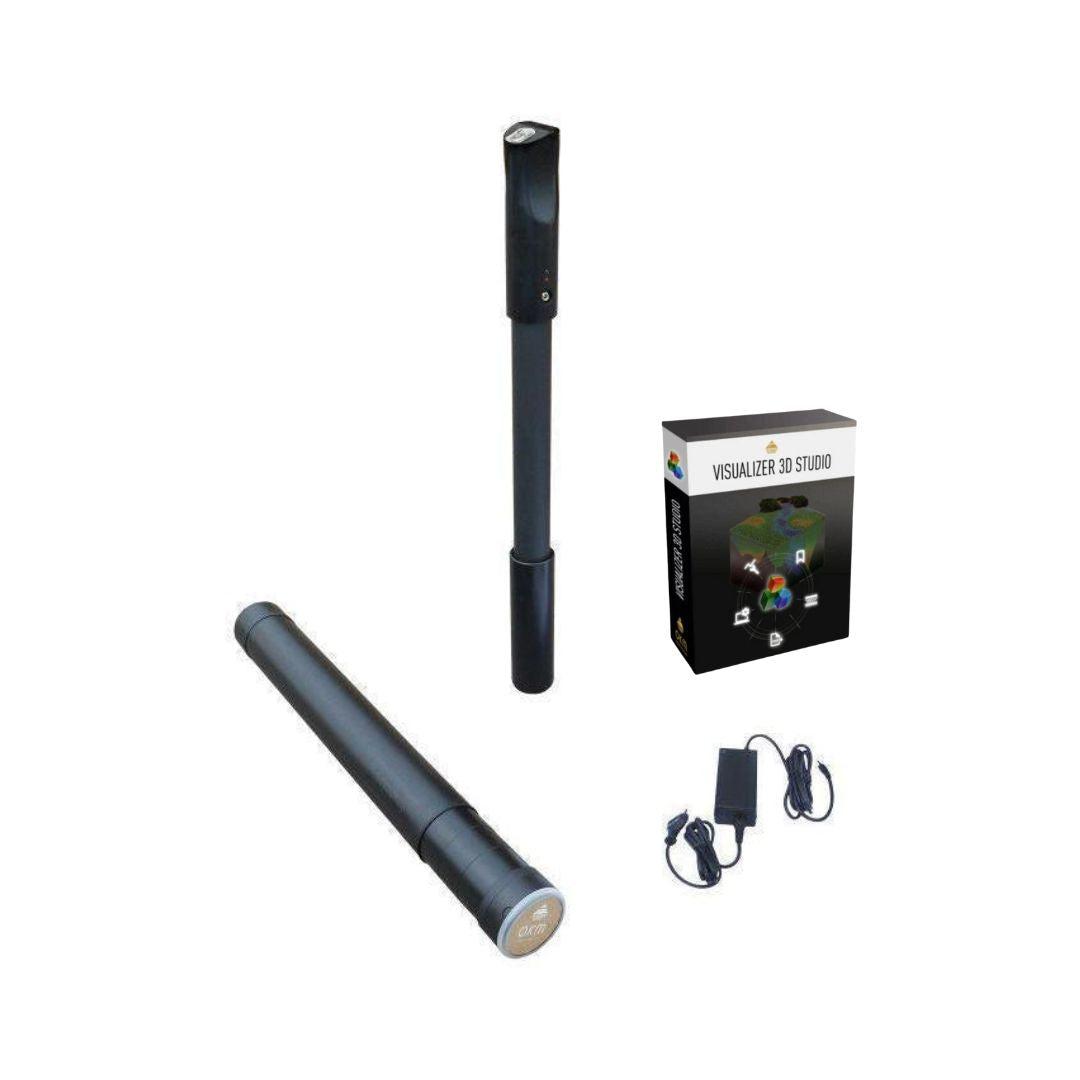

OKM Fusion Ultra Light Package Includes:
- 1x Control Unit
- 1x Download Code for OKM App for Android Smartphone
- 1x USB Flash Drive with OKM Visualizer 3D Studio Standard Edition
- 1x Charger with Charging Cable
- 1x Travel Adapter
- 1x Quick Start Guide
- 1x Protector Tube
Special Features Of The OKM Fusion Ultra Light
- 3D Visualization
- 3D Ground Scan
- GST/EMSR (Ground Scan Technique/Electro‑Magnetic Signature Reading)
- Multilingual Operation
- Rechargeable High-Capacity Battery
- Wireless Technology
Detect Metal Objects with Magnetometer
Find anomalies in the magnetic field and visualize these directly on the smartphone display. In this way, potential finds like artifacts, treasure chests, militaria and further ferrous objects can be detected very easily. Experienced treasure hunters use the Magnetometer before scanning the target area with 3D Ground Scan in order to clear the scan field of smaller objects near to the surface.
Detect Anomalies with 3D Ground Scan
With the 3D Ground Scan operating mode treasure hunters, militaria seekers and historians track down underground cavities and artifacts. Potential finds and discoveries can be displayed on the Android smartphone via OKM Fusion Light App and saved for further analyses. Treasure hunters get a more accurate 3D image by transferring the scan data to their notebook and analyze the images in the software Visualizer 3D Studio.
Analyze Scan Data with Detection Software Visualizer 3D Studio
Thanks to the Visualizer 3D Studio software, which is included on the USB flash drive for installation on your Windows notebook, the 3D Ground Scan data can be displayed in a detailed 3D graphic. After successfully transferring the stored scan data to your notebook, you can determine the position, size and depth of potential treasures even more precisely.
Specifications of the OKM Fusion Ultra Light
Computer Minimum Requirements for Visualizer 3D Studio
- Interface (data transmission): USB 2.0
- Free disk space: minimum 250 MB
- Working memory (RAM): 2 GB
- Display: 1920 x 1080
- Processor: 1.2 GHz
- Graphics card: 1 GB RAM, OpenGL 3.3
- Operating system: Windows 10
Data Transmission
- Technology: Bluetooth 5.1
- Frequency: 2.402 – 2.480 GHz
- Maximum Transfer Rate: 1 Mbps
- Maximum Transmitting Power: +8 dBm
- Maximum Range: approx. 10 m
OKM Fusion Ultra Light Control unit
- Dimensions (H x W x D): 800 x 65 x 65 mm
- Weight: approx. 700 g
- Input voltage (max.): 19 V DC, 3.16 A
- Lithium-Ion baterry: 2600 mAh
- Operating time: approx. 12 h
- Charging Time: approx. 3 h
- Processor / Main CPU: Cortex M3, 32 MHz
- Processor / Slave CPU: Cortex M0, 24 MHz
- Sample rate: 1024 values / second
- Measurement resolution: 16 bit
- Operating temperature: –10°C – 60°C
- Storage temperature: –20°C – 70°C
- Waterproof: No
- Sensor technology / Coil technology: SCMI-15-D
- Air humidity: 5% – 75%
- Protection Type: IP40
Smartphone Minimum Requirements for Fusion Light App
- Android Version: min. Android 7.1 (Nougat)
- Wireless Connection: Bluetooth 5.1
- Display Resolution max: 1440 x 720 px
- Download File Size: Setup 2.8 MB, Update 2.83 MB
