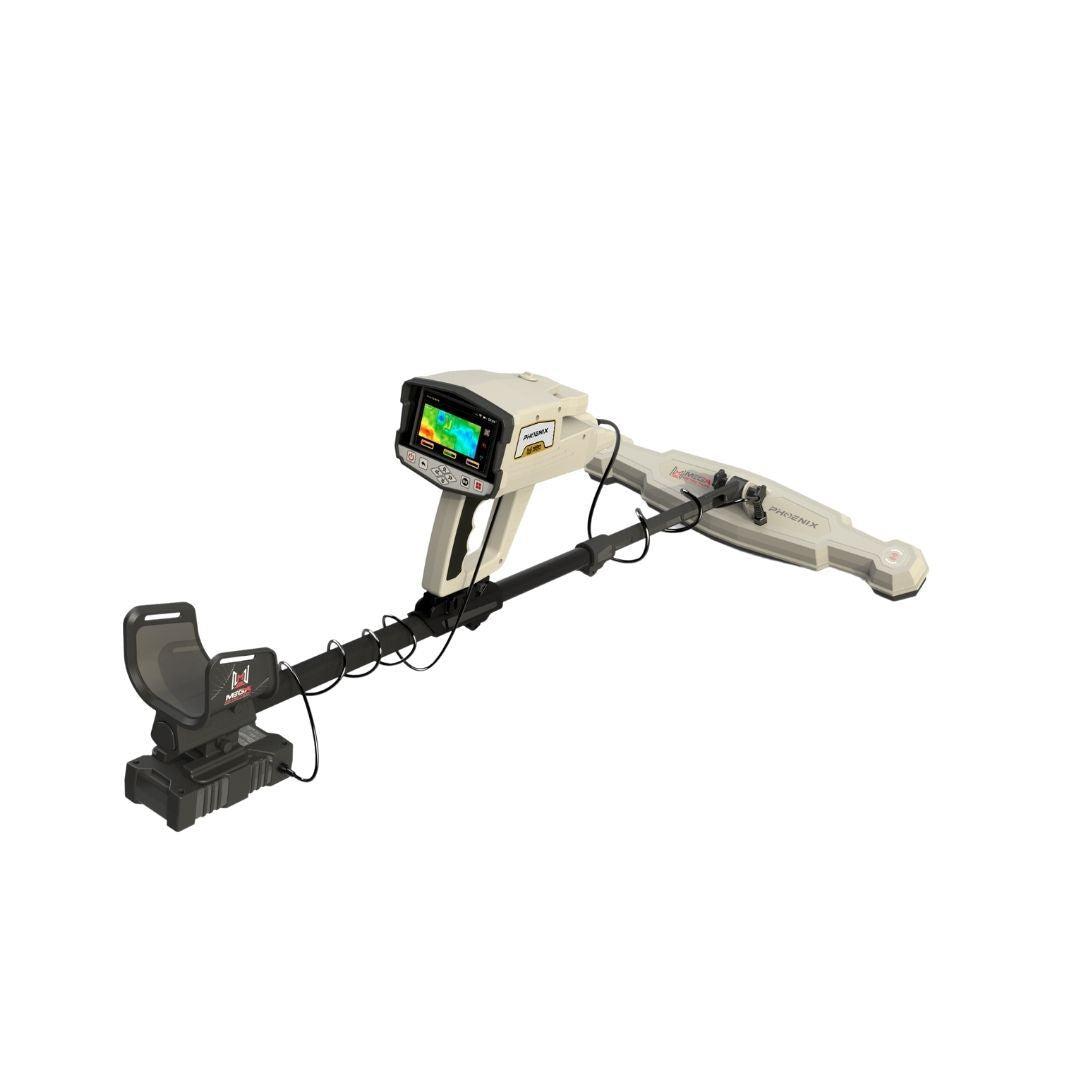

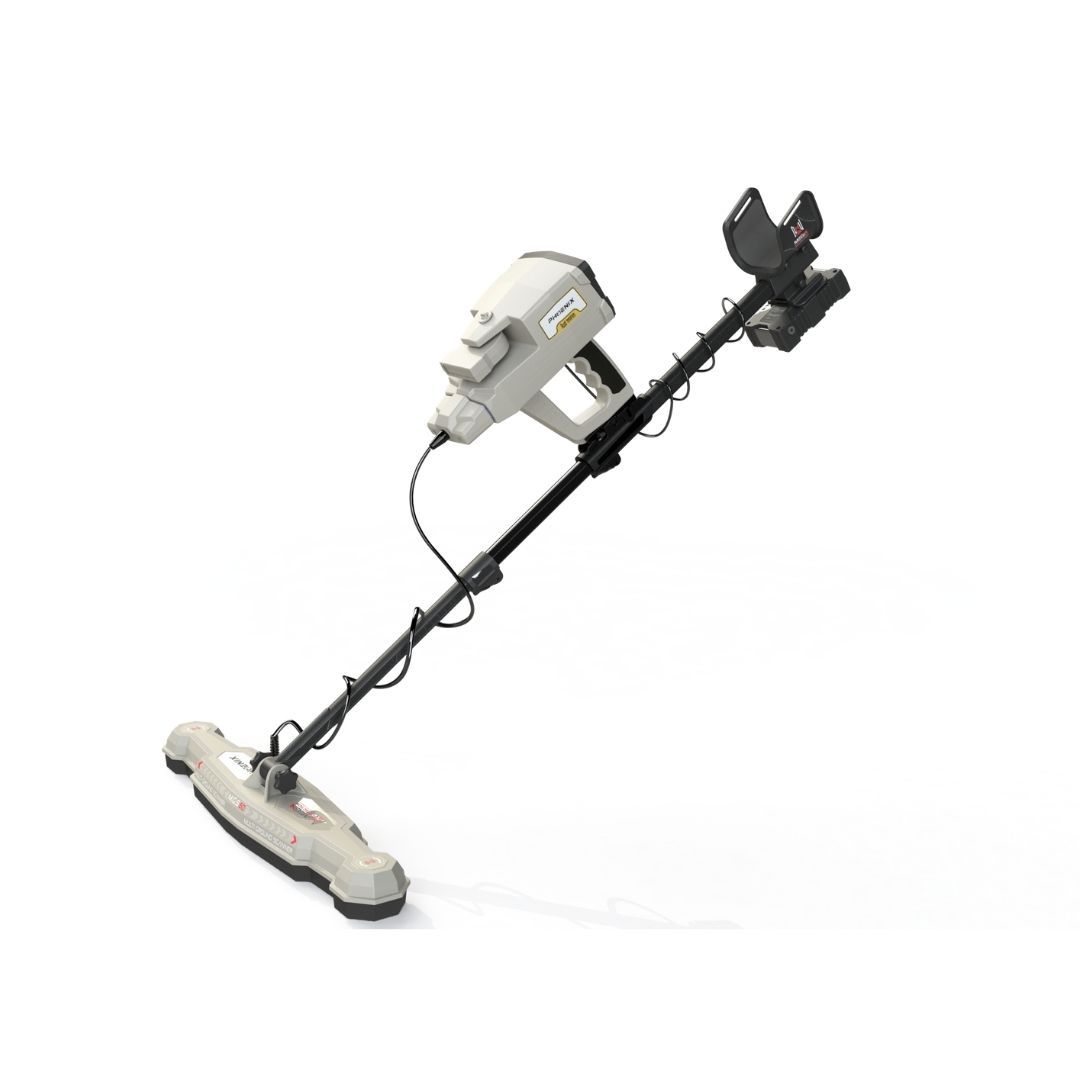

Mega Detection Phoenix 3D Ground Scanner and Metal Detector

  • $6,900.00
    Unit price per
Shipping calculated at checkout.

Ground Scan Live Stream

Shipping Worldwide!


  • 12 Languages
  • 5 Years Warranty
  • Made in Germany

    Device Description

    Phoenix metal detector is a 3D ground scanner with a completely new ground scanning technology that ensures faster and more accurate results in finding and detection of ancient treasures and burials at very great depths.

    Mega Detection Company provides, via Phoenix 3D ground scanner, an effective professional device with 3 search systems suitable for professional prospectors and treasure hunters looking for antiquities and gold treasures.


    Device Features

    • Powerful completely new ground scan technology with great depth reaches up to 25 meters.
    • Multi-Ground Scanner (M.G.S) probe for a 3D ground scan with wider coverage and accurate results.

    The table below shows the type of target for each color:

    Green Light Blue Blue Yellow Red
    Normal Ground Small Cavity Cavity Metal Objects Gold


    • Powerful Live Stream system via Vertical High Signal Transceiver (V.S.T) probe for live ground scan and pinpointing.
    • 3 Search systems with different detection technologies that fit all needs of professional treasure hunters including Ground Scan – Live Stream - Pinpointer.
    • 2D Visualization of scan results for all systems on the device screen.
    • 3D Visualization on any supported Android tablet via Multi Visual Analyzer app.
    • LEDs Bars a set of LEDs located on two sides of the conical end of V.S.T that change their color based on the detected target type.
    • Large size colored LCD screen provides a comfortable viewing experience for the results, and easy to change the scan settings.
    • The powerful multi-lingual visual software program enables easy settings adjustment and results in the display.
    • Operated via external rechargeable lithium-ion batteries guarantee a long-time operation.

    Package Contents

    • System Box (Main Unit)

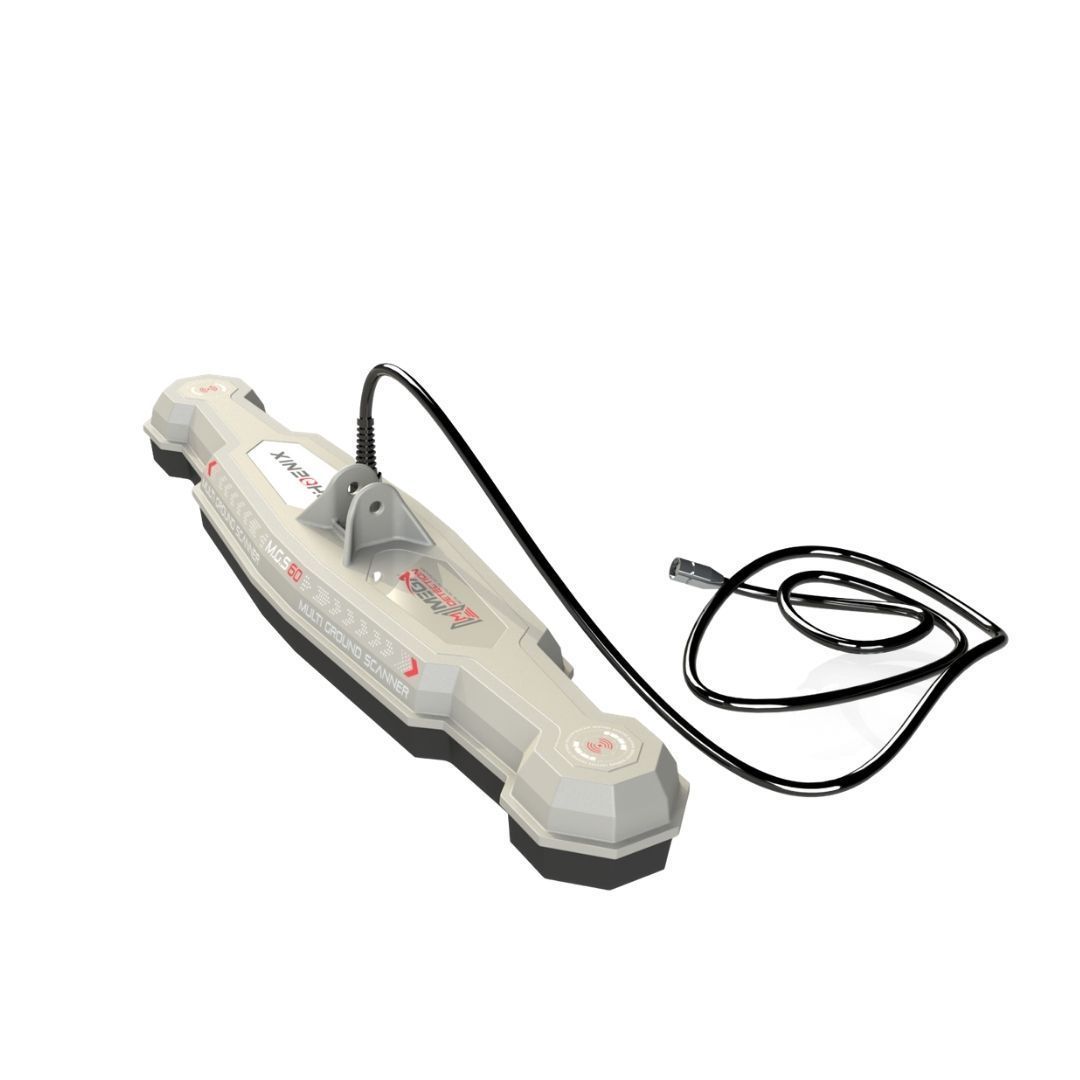

    • Multi-Ground Scanner (M.G.S.60)
    • Vertical High Signal Transceiver: (V.S.T)
    • M.G.S Connector

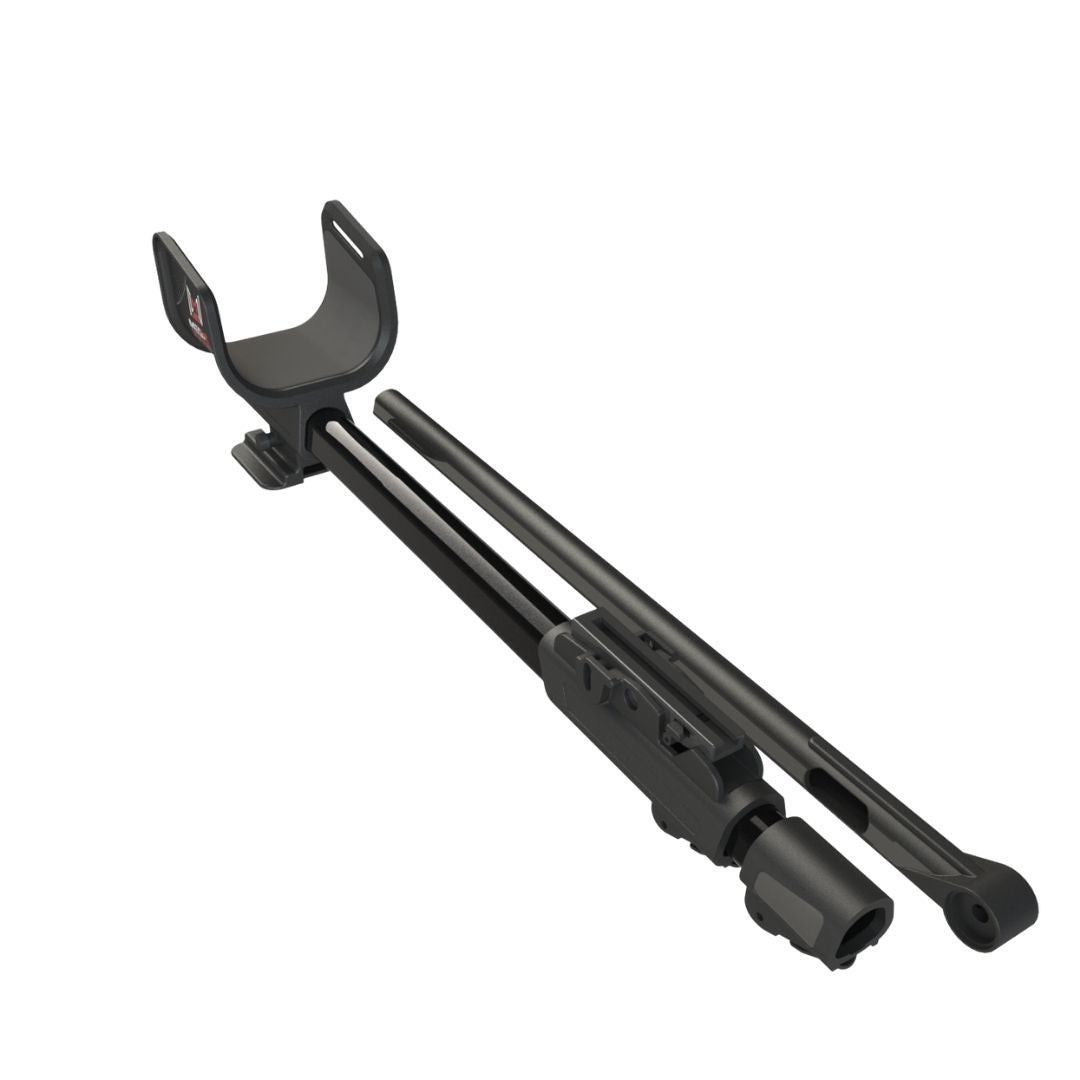

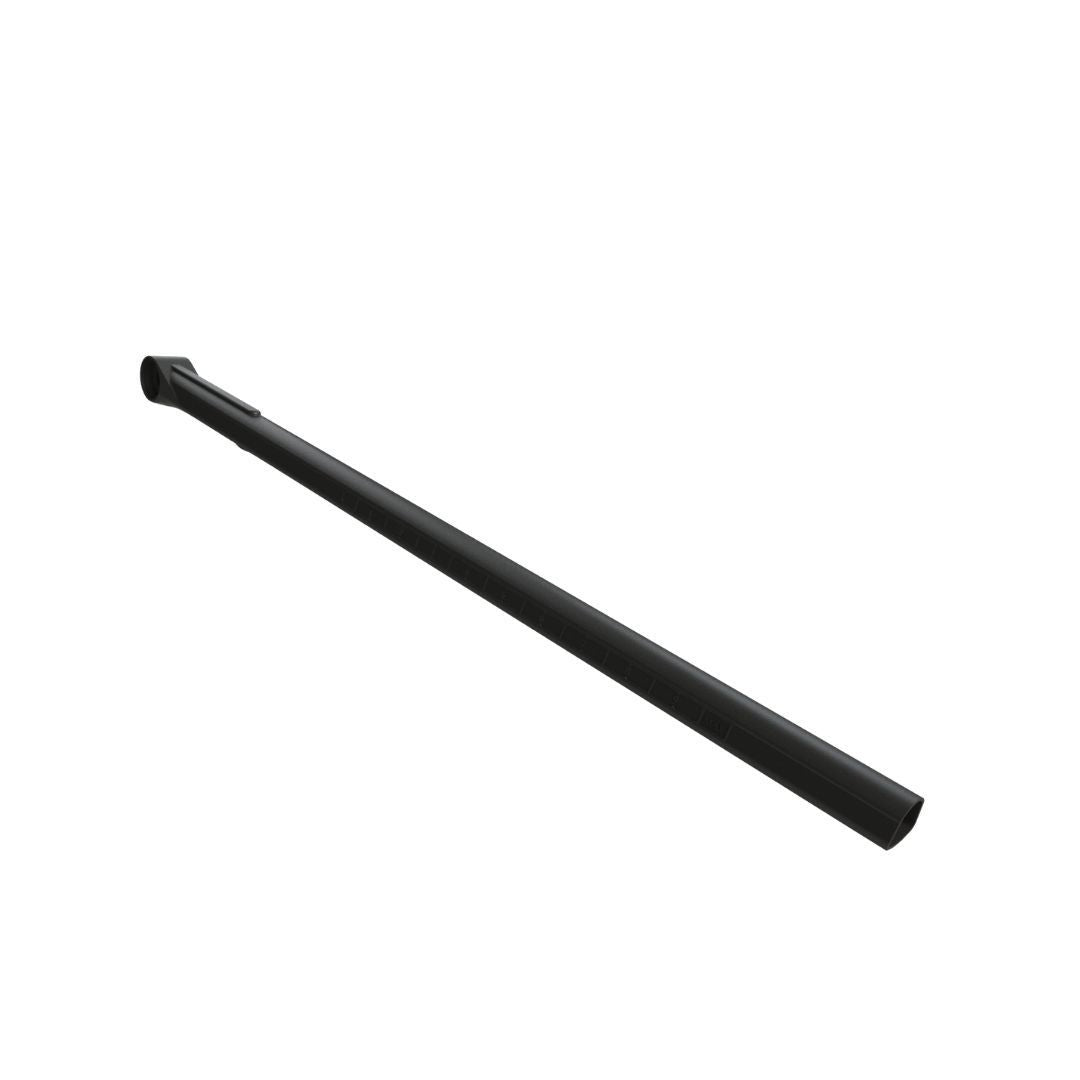

    • Armrest & Shafts
    • Lithium-Ion Battery
    • Headphones
    • Accessories Box (Screws – Nuts – Battery Charger – Cables…)

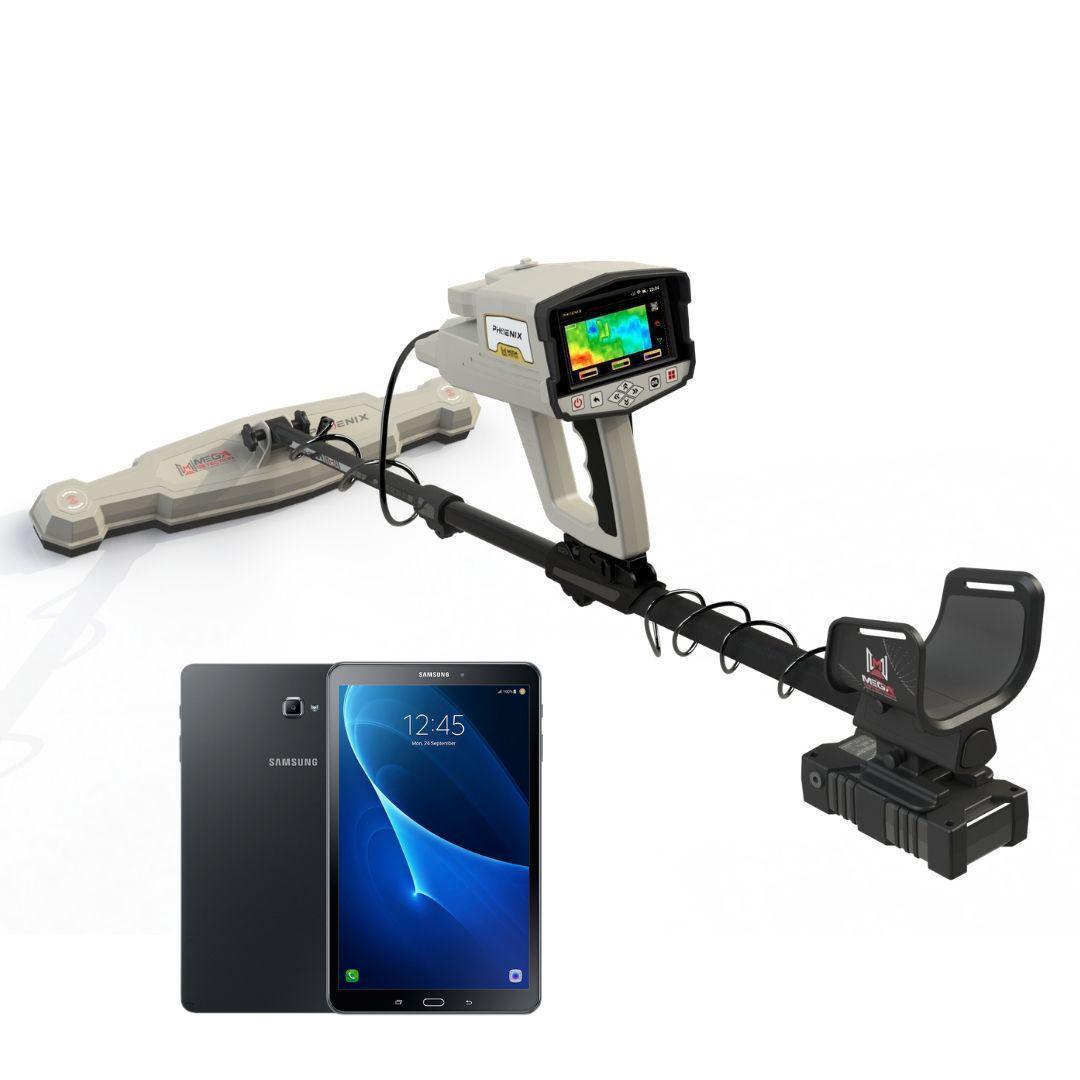

    • Android Tablet
    • User Manual


    Detection Tools






    60 x 13 x 9 cm

    770 g

    4 x 2000 μT em sensors






    60 x 13.5 x 12 cm

    660 g

    2 x 2000 μT em sensors

    with acoustic light flux ***


    Note: *** Its sensitivity increased 5 times and it has a dynamic acoustic light flow.


    Detecting Technologies

    Ground Scan

    Multi-Ground Scanner with four scan sensors

    Live Stream & PinPointer

    Vertical High Signal Transceiver unit with color analyzing LED’s


    Technical Specifications
    Package Package Dimensions 68 x 51 x 28 cm
    Package Weight 17 Kg
    Material ABS Plastic
    CPU Processor Type ARM 64 Bit
    Processor Frequency 1.4 GHz
    Memory Storage Memory 32 GB
    Memory Type SD Card
    Screen Screen Type High-Resolution TFT LCD
    Screen Size 5 Inch
    Screen Resolution 1024 x 860
    Colors 16 million
    Wi-Fi Connection 2.4 GHz
    Sound Output Speaker – Headset
    Jack Type 3.5 mm
    Headset Wired Headphones
    Internal Speaker Yes
    Power Battery Type Lithium-Ion
    Battery Capacity 21000 mAh
    Fast Charging No
    Removable Battery Yes
    Languages German – English – French – Spanish – Russian – Italian – Arabic – Hebrew – Persian – Turkish – Urdu – Chinese
    Temperatures Operation temperature 0°C – 40°C
    Storage temperature  –20°C – 60°C
    Humidity 5% – 75%


    Import Duties, Taxes, and Charges:

    ( For international customers that are located outside of the United States. )

    • Import Duties, Taxes, and Charges are not included. These charges are the buyer's responsibility.
    • Please check with your country's customs office to determine what these additional costs will be prior to buying.
