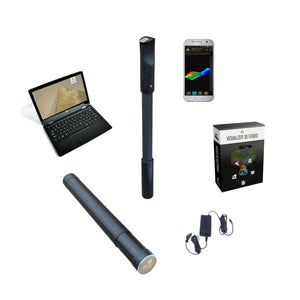

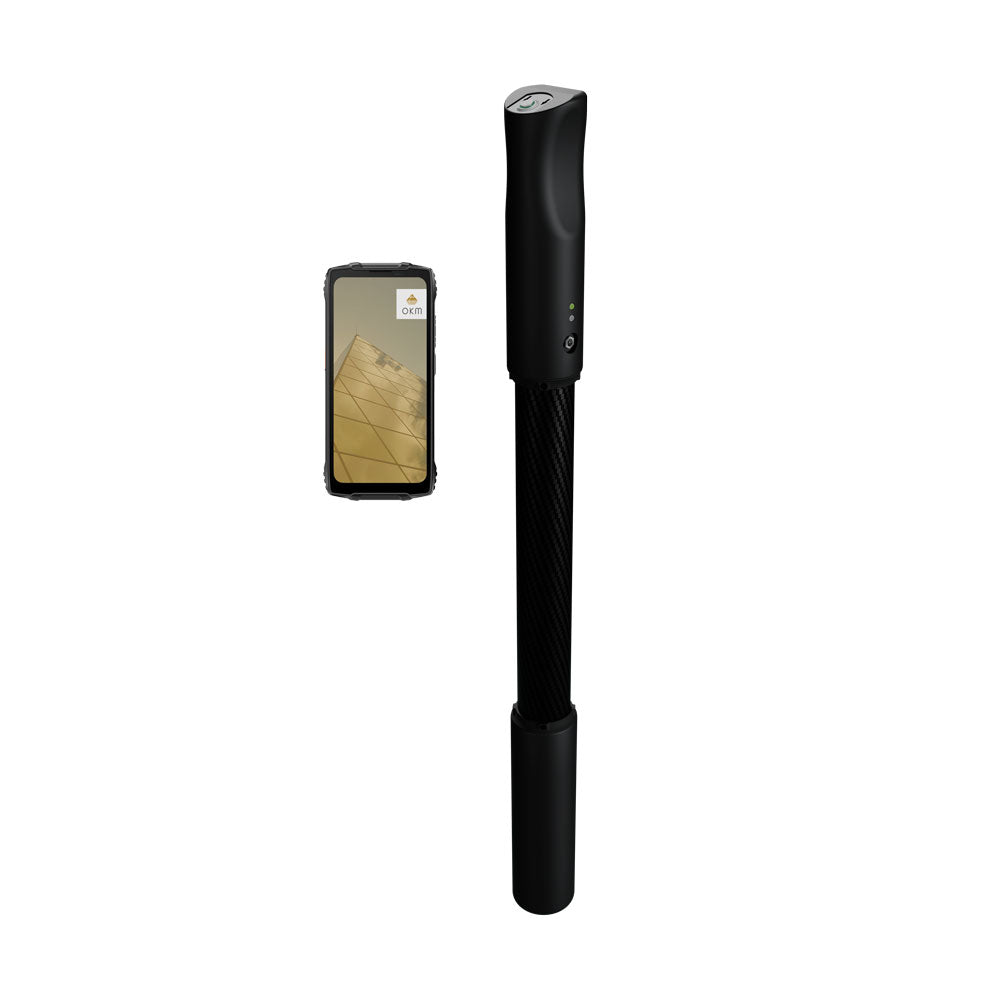

The small scope of delivery that has it all: Fusion Light, the lightweight among the metal detectors and ground scanners, consists of a compact control unit with integrated sensors and is controlled via Android App. The treasure detector offers the functions magnetometer and 3D ground scan, which are essential for successful treasure hunters. The measurement results are visualized graphically with the Android App directly on smartphones or tablets.

The 3D Ground Scan feature helps treasure hunters, military seekers, and historians track down underground cavities and artifacts. Potential finds and discoveries can be acoustically signaled via smartphone on request. At the same time, the measurement data is displayed on the display of your Android smartphone or tablet via the OKM App and can be saved for further analysis. You will get a more accurate 3D image by transferring the scan data to your PC and analyze it with the software Visualizer 3D.

If you do not own an Android device, a compatible smartphone or tablet can be added to the Fusion Light package (extra charge).

Fusion Light App 3D Ground Scan: Measurement results of the 3D ground scan are visualized directly via the app and can be saved for more precise analysis on the PC.

Thanks to the optionally available Visualizer 3D software the measurement data of the 3D ground scan can be displayed in a detailed 3D graphic on the PC. After successful transfer of the stored scan data to the PC, treasure hunters can determine the position, size, and depth of the found treasures even more precisely. The Visualizer 3D software is optionally available (at an extra charge).

Fusion Light with Visualizer 3D: An accurate 3D analysis of the measurement data is provided by the OKM Visualizer 3D software.

With the scan function magnetometer, the magnetic field of the earth can be measured. Anomalies in the magnetic field indicate potential finds. In this way, artifacts buried for a long time such as treasure chests, old ammunition, and other ferrous objects can be detected.

Computer Minimum Requirements

• CD-ROM Drive: Minimum 4x
• Interface (Data Transmission): USB
• Free Disk Space: Minimum 50 MB
• Working Memory (RAM): Minimum 256 MB
• Graphics Card: Minimum 128 MB, OpenGL-compatible
• Processor: Minimum 1.2 GHz
• Operating System: Windows Vista, Windows 7, Windows 8, Windows 10

Data Transmission

• Technology: Bluetooth
• Frequency: 2.4 – 2.4835 GHz
• Maximum Transfer Rate: 1 Mbps
• Receiving Sensitivity: –85 dBm
• Maximum Range: Approx. 10 m

Control unit

• Dimensions (H x W x D): 800 x 65 x 65 mm
• Weight: Approx. 700 g
• Input Voltage (Max.): 19 V DC, 3.16 A
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / Slave CPU: Cortex M0, 24 MHz
• Sample Rate: 1024 values / second
• Measurement Resolution: 16 bit
• Operating Temperature: –10°C – 60°C
• Storage Temperature: –20°C – 70°C
• Waterproof: No
• Sensor Technology / Coil Technology: SCMI-15-D
• Operating Time: Approx. 12 h
• Air Humidity: 5% – 75%
• Protection Type: IP40
• Charging Time: Approx. 3 h
